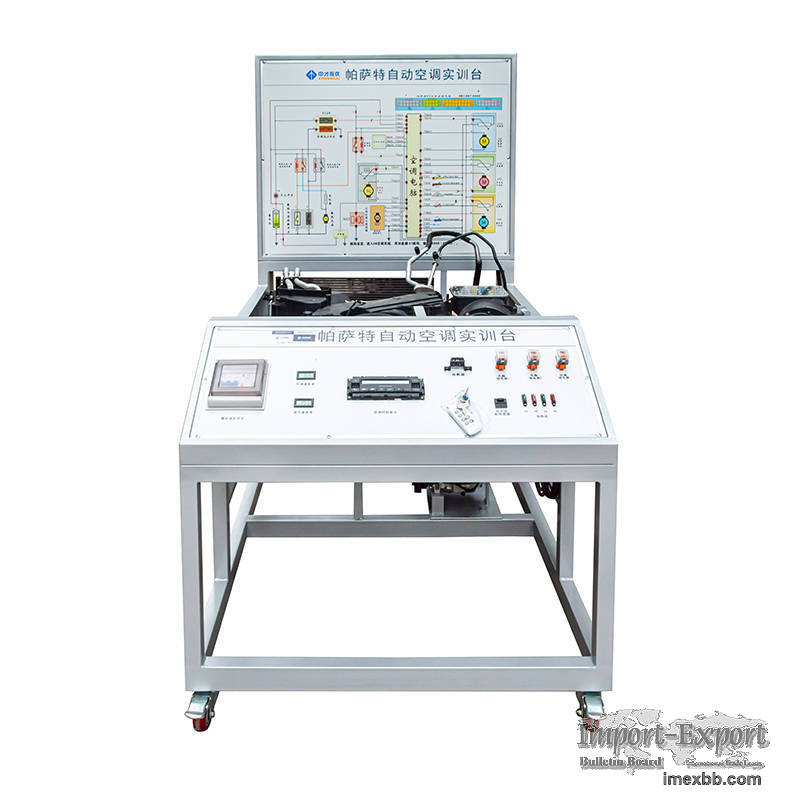

Volkswagen Passat automatic air conditioning training bench

1、Product Overview:
The equipment adopts Volkswagen Passat B5 automatic air conditioning system
as the basis, fully demonstrating the automatic air conditioning system
composition structure and working process.
Suitable for secondary and higher vocational and technical colleges,
general education colleges and training institutions on the theory of automatic
air conditioning system and maintenance of practical training teaching needs.

2、Main components:
Compressor, all sensors, actuators and air conditioning harness, high and
low pressure pipe, condenser assembly, dry bottle assembly, blower assembly,
air outlet and air conditioning operating panel assembly.

3、Functional features:
(1) The training table measurement panel painted with colorful spray-painted
circuit diagrams, using 4mm thickness of high-strength aluminum plastic plate
spray-painted, with a large temperature difference, wear-resistant, moisture-
proof, anti-corrosion, not easy to deformation, long service life, bright
colors, not easy to fade and other characteristics.
(2) The operation panel of the training table is installed with air
conditioning operation panel and temperature monitor, which can change the
parameters of indoor temperature and outdoor temperature in real time.
(3) The training table panel is installed with detection terminals, which can
directly detect the electrical signals of sensors, actuators, transmission
control unit pins on the panel, such as resistance, voltage, current, frequency
signals, etc.
(4) The training table is built with international standard aluminum alloy
profile, with light quality, high strength, corrosion resistance, long life,
etc., without the need to go through the spraying process, more environmentally
friendly, more beautiful and high-grade appearance, the table frame with self-
locking casters, mobile and flexible, safe, reliable, durable.

4、Specification parameters:
Overall dimensions: 1300 × 1000 × 1800mm (L × W × H)
Power supply: three-phase four-wire (three-phase five-wire 380V ± 10% 50Hz)
Input power; AC 220V±10% 50Hz
Working power supply; DC 12V
Refrigerant: R134a

Minimum Order: 1 sets
