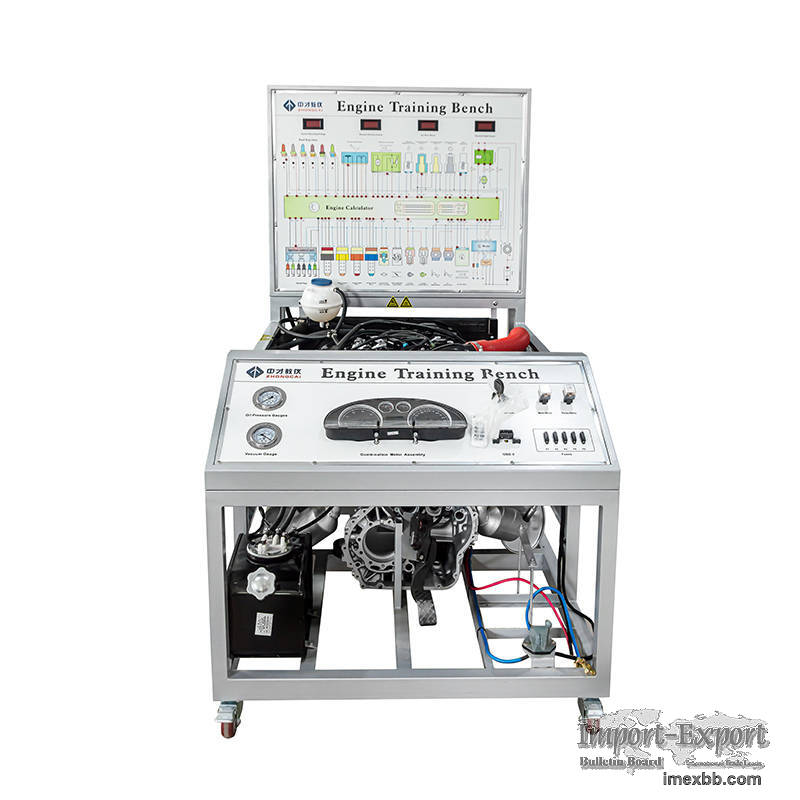

Volkswagen Audi V6 (APS) engine training table

I. Product Overview
The equipment uses the Volkswagen Passat V6 2.8L electronically controlled
gasoline engine as the basis for production, the engine can be started,
acceleration, deceleration and other working conditions of the practice
operation, the real display of the V6 electronically controlled gasoline engine
composition structure and work process.

II. The functional characteristics
1. Real running Volkswagen Passat V6 2.8L electronically controlled gasoline
engine, fully demonstrating the composition of the structure and working
process of electronically controlled gasoline engine.
2. The training table measurement panel is painted with colorful spray-painted
circuit diagrams, using 4mm thickness of high-strength aluminum composite panel
UV spray-painted, with a large temperature difference, wear-resistant,
moisture-proof, anti-corrosion, not easy to deformation, long service life,
bright colors, not easy to fade, etc.; students can intuitively control the
circuit diagram and electronically controlled gasoline engine in kind,
recognize and analyze the working principle of the control system.
3. There is a car instrument installed on the training table panel, which can
display the engine speed, water temperature, oil pressure light, charging
indicator, electric control system fault indicator and other parameter changes
in real time.
4. The training table panel is installed with detection terminals, which can
directly detect the electrical signals of sensors, actuators and engine control
unit pins on the panel, such as resistance, voltage, current, frequency
signals, etc.
5. The training bench is installed with diagnostic socket, which can be
connected with special or general-purpose car decoder to read fault codes,
clear fault codes, read data stream and other self-diagnostic functions for the
engine electronic control system.
6. The training bench is equipped with throttle control device, which can
facilitate the acceleration and deceleration of the engine.
7. The training table is equipped with a power switch, water tank guard,
flywheel guard and other installation protection devices.
8. The training table is made of high quality steel welded, with high strength,
corrosion resistance, long life, etc. After spraying process, the appearance is
beautiful and high-grade, the table frame with self-locking casters, flexible
movement, safe, reliable, durable.

III. Specification parameters
Product size: 1300*1000*1800mm (L*W*H)
Power supply: DC12V

Minimum Order: 1 sets
