Volkswagen 1.4T direct injection engine training bench

1.Product Introduction

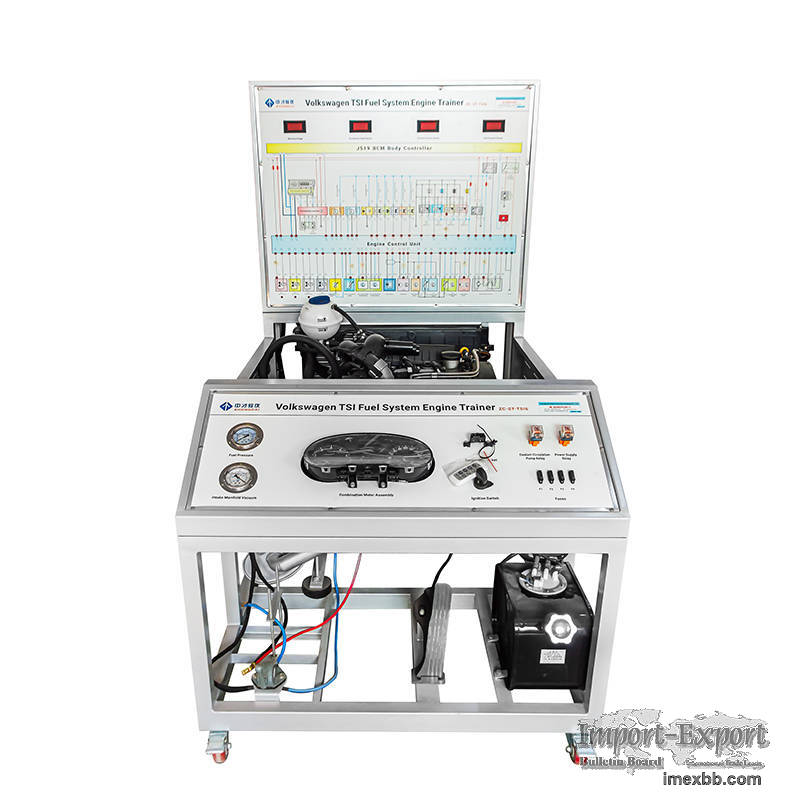

(1) The equipment is composed of two parts: the fixed stand of Volkswagen 1.4
TSI gasoline engine assembly and running accessories and the running test
control panel stand after 2013.
(2) Volkswagen 1.4 TSI engine training bench engine can be started,
acceleration, deceleration and other normal working conditions of the practice
operation, the real display of electronically controlled gasoline engine
components structure and work process.
(3) Volkswagen 1.4 TSI engine training bench is suitable for higher vocational
and technical colleges, general education colleges and training institutions on
the teaching needs of automotive engine and maintenance practical training.

2. Functional features
1) The real electronically controlled gasoline engine can be run, fully
demonstrating the structure and working process of the electronically
controlled gasoline engine, the engine can be started, accelerated, decelerated
and other normal working conditions of the practice operation.
2) The training table is composed of two parts: the fixed table of engine
assembly and running accessories and the table of running testing control
panel.
3) The training table panel is painted with color UV plate spraying circuit
diagrams, students can intuitively compare the circuit diagrams and engine
objects, recognize and analyze the working principle of the control system; the
panel adopts 4mm thick corrosion-resistant, trauma-resistant, pollution-
resistant, fireproof, moisture-proof senior aluminum plastic plate, the surface
is treated by a special process of spraying primer; the panel is printed with
colorful system circuit diagrams that never fade.
4) The panel of the training table is installed with detection terminals, which
can directly detect the electrical signals of sensors, actuators and engine
control unit pins on the panel, such as resistance, voltage, current, frequency
signals, etc.
5) The equipment testing panel is equipped with a 20cm steel table in front of
the base, which is convenient for placing data, testing instruments, etc.
6)The training table panel is installed with automotive instrumentation, fuel
pressure gauge, vacuum pressure gauge, which can display real-time changes in
parameters such as engine speed.
7) The training table is installed with a diagnostic socket, which can be
connected with a special or general-purpose car decoder to read fault codes,
clear fault codes, read data streams and other self-diagnostic functions for
the engine electronic control system.
8) The training table is equipped with power switch, engine emergency stop
button and protection device.
9) The base of the training table is welded with steel structure, the surface
is treated with spraying process, with self-locking casters, flexible movement,
safe, reliable and durable.
10) Configured with fault insertion, evaluation, and data acquisition system.

3. Technical specifications
Working power: DC 12V (battery: 60AH 12V)
Fuel grade: according to the engine model
Fuel tank volume: 10L
Operating temperature: -40℃～+50℃
Color：7032
Steel tube: 40*40*3mm
Panel cabinet: 1.5mm cold plate stamping and forming
Mobile casters:120*80mm
Shape:1500*1000*1700mm(L*W*H)

Minimum Order: 1 sets
