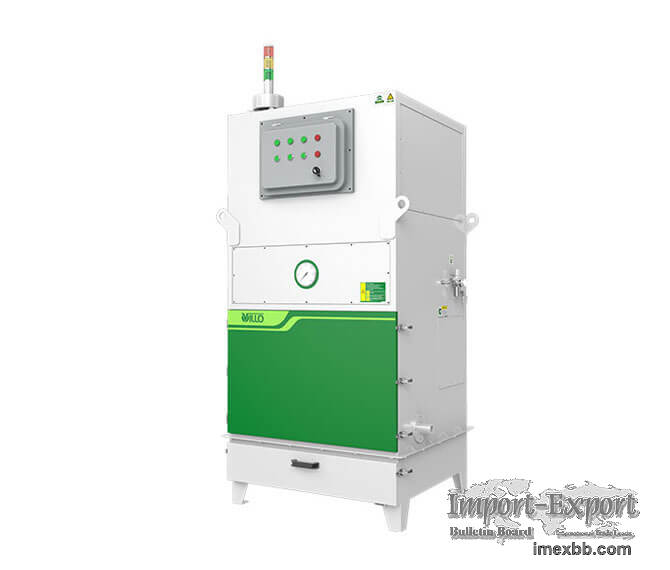

VJFB Series – Industrial Explosion Proof Dust Collector

VJFB series industrial dust collector has the characteristics of explosion-
proof, large air volume, pulse jet cleaning, stable and reliable structure.

Parameters of VJFB Series – Industrial Explosion Proof HEPA Vacuum Dust
Collector
Model VJFB-1.5 VJFB-2.2 VJFB-3.0 VJFB-4.0 VJFB-
5.5 VJFB-7.5 VJFB-11 VJFB-15
Voltage (V/Hz) 380 / 50
Power(kW) / (HP) 1.5 / 2.0 2.2 / 3.0 3.0/4.0 4.0 / 5.5
5.5 / 7.5 7.5 / 10 11 / 15 15 / 20
Starting current （A） 25 40 50 56 65 95 120
150
Rated current（A） 3.4 4.8 6.4 8.2 11 14.5 21.5
29.5
Max air flow
(m³/h) / (CFM) 1500 / 882 2200 / 1294 3000 / 1765 4000 / 2353
5500 / 3235 7500 / 4412 9000 / 5294 12000 / 7059
Filter area
(m²) / (sq.ft) 11 / 118.5 22 / 137 22 / 137 44 / 474
44 / 474 66 / 710 99 / 1066 99 / 1066
Filter efficiency 99%
Dust container
capacity (L) / (gal) 30 / 7.9 50 / 13.2 60 /15.9(2pcs) 80 /
21.2(2pcs) 100 / 26.4
(2pcs) 100 / 26.4(2pcs)
Noise dB (A) 71±2 73±2 74±2 76±2 78±2 79±2 80±2 81±2
Anti-explosive level ExdIIBT4
Filter cleaning method Pulse jet
Dia. air inlet
(mm) / (in) Ø150 /6 Ø200 / 8 Ø250 / 10 Ø300 / 12 Ø350 /
14 Ø400 / 16
Dimension [L*W*H] (mm) / (in) 790*605*1730/
31.1*23.8*68.1 1000*700*1900/
39.4*29.6*74.8 1060*910*2095/
41.8*35.9*82.5 1180*1010*2190 / 46.5*39.8*86.2 1350*900*1985/
53.1*35.4*78.1 1350*1250*2175/
53.1*49.2*85.6 1350*1250*2175/
53.1*49.2*85.6
Weight (kg) / (lb) 190 / 419 270 / 596 300 / 662 360 /
794 380 / 838 630 / 1389 840 / 1852 870 / 1918
It is normal that the current value may fluctuate in a small range
Voltage and frequency will affect the current value

Conductive material coated on the filter cartridge.

Safety explosion venting membrane.

Explosion proof motor and electrical control cabinet guarantees the safe
running of the machine.

Pulse jet cleaning method for the filter makes machine to work continuously.
User can set the pulse frequency depending upon the requirements.

Vertical filter cartridge installation mechanism.

Differential pressure gauge

Applications of VJFB Series – Industrial Explosion Proof Vacuums /
Explosion Proof Vacuum Cleaner
Specialized for collecting wide range of inflammable and explosive dust. It is
suitable for powder metallurgy, aluminum powder grinding, grain processing,
food production, high polymer plastics industry, synthetic dyes and coatings,
pesticide and pharmaceutical manufacturing, plant fiber textile technology and
so on.

If you want to know more types of intrinsically safe vacuum cleaners, please
visit our website.

VILLO is a leading global provider of industrial dust vacuum control solution
and explosion protection system, which helps to improve worker and equipment
productivity, minimise energy use and benefit human health and the environment.
