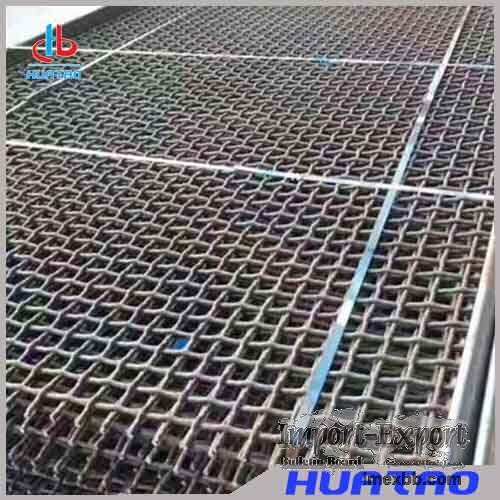

Vibrating Screen Mesh

Specification：
Material: black wire, spring steel wire, manganese steel wire and stainless
steel wire.
Surface treatment: galvanized or painted.
Wire diameter: 0.71mm - 12.5mm.
Mesh size: 1mm - 100mm.
Hole type: square, rectangular and long slot.
Weaving type: Plain weave, Pre-crimped, Flat top, Intermediate crimped ,
Lock crimped.

Description：
Woven Wire Mesh is manufactured from manganese steel wire, galvanized wire
or stainless steel wire. The wires are woven into square, rectangular
or long slot meshes.Woven vibrating screen mesh has various weaving types,
such as plain weave, pre-crimped weave, flat top, intermediate crimped
and lock crimped. Various weaving types can fit different vibrating screens
and materials.Woven wire screen is also called quarry/mining screen mesh,
screening media, which is widely used in vibrating, scalping and sizing
materials of rock, stone, asphalt,quarry,aggregate, limestone, graint etc.

Hook Type:
Bending.
Welding.
Metal sheet hook. (C type or U type).
Features:
High tensile strength.
Abrasion and wear resistance.
Impact resistance.
Acid and alkali resistance.
Various weaving types to fit different materials.
Different hook types for easy installation and fixation.

Application:
The woven vibrating screen mesh is widely used in the vibrating screens,
crushers and trommel screens.
Woven vibrating screen mesh can be used for screening and separating stones,
coal, mining, gravel, sand and any other materials.
