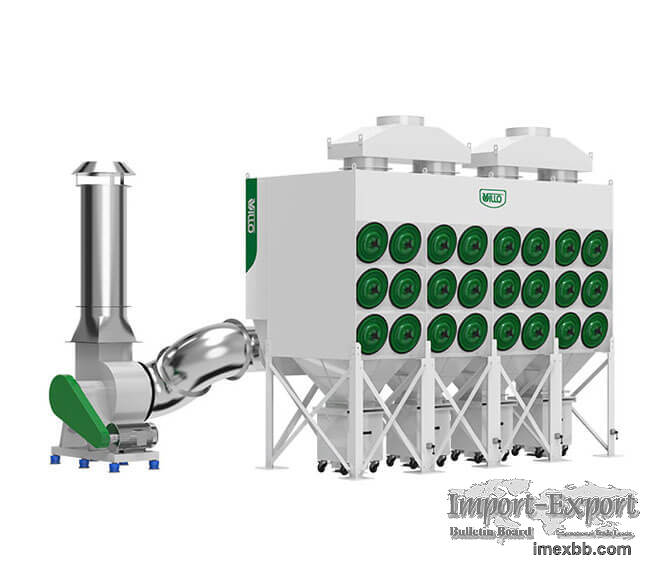

VFO Series Industrial Dust Collector System

VFO Series is a central industrial dust collection system. It has the
characteristics of large air volume, stable structure and convenient cartridge
installation and ejection mechanism. It is suitable to deal with the production
and processing of a large amount of dust.

Parameters of VFO Series Industrial Dust Collection Equipment
Model VFO 3-12 VFO 3-24 VFO 3-36 VFO 3-48 VFO 3-
60 VFO 3-72
Voltage (V/Hz) 380 / 50
Air flow (m³/h) /(CFM) 9000~15000 /
5300~8800 18000~30000 /
10600~17700 27000~45000 /
15900~26500 36000~60000 /
21200~35300 45000~75000 /
26500~44100 54000~90000 /
32000~53000
Power Calculate the total pressure/static pressure according to the total
resistance of the system, and then select the appropriate fan power
Filter area
(m²)/ ( sq.ft ) 144 / 1550 288 / 3100 432 / 4650 576 / 6200
720 / 7750 864 / 9300
Filter efficiency 99%
Capacity of the dust container (L) / (gal) 100 / 26.4 (1pcs) 200 /
52.8 (2pcs) 300 / 79.2 (pcs) 400 / 105.6 (4pcs) 500 / 132
(5pcs) 600 / 158.4 (6pcs)
Noise dB (A) 82±2 83±2 85±2 85±2 88±2 90±2
Filter cleaning method pulse jet cleaning+holder on dust collecting box
Dimension (Excluding the Blower)
[L*W*H] (mm) / (in) 1120*1910*3100 /
44.1*75.2*122.0 2240*1910*3640 /
88.2*75.2*143.3 3360*1910*3640 /
132.3*75.2*143.3 4480*1910*3640 /
176.4*75.2*143.3 5600*1910*3640 /
220.5*75.2*143.3 6720*1910*3640 /
264.6*75.2*143.3
Weight (kg) / (lb) 400 / 882 800 / 1764 1200 / 2646 1600 /
3528 2000 / 4410 2400 / 5290
※ The air flow and Negative pressure can be calculated according to the
actual condition, and then choose the bigger or more suitable power machine.

Modular combination structure

Only requires a small changes to the original equipment and piping systems，
modular dust collector unit can achieve rapid expansion to increase
productivity and expand production scale，reduce expansion cost.

Easy installation & ejection of declined insertion type filter, can reduce the
time to replace the filter.

The filter material is polyester with PTFE coated, which can filter 99.9% dust
at 0.3 microns.

Pulse jet cleaning method for the filter makes machine to work continuously.
User can set the pulse frequency depending upon the requirements.

As one of industrial dust collection systems manufacturers, we can offer kinds
of industrial dust vacuum systems for sale, anything you need, please leave us
a message.
