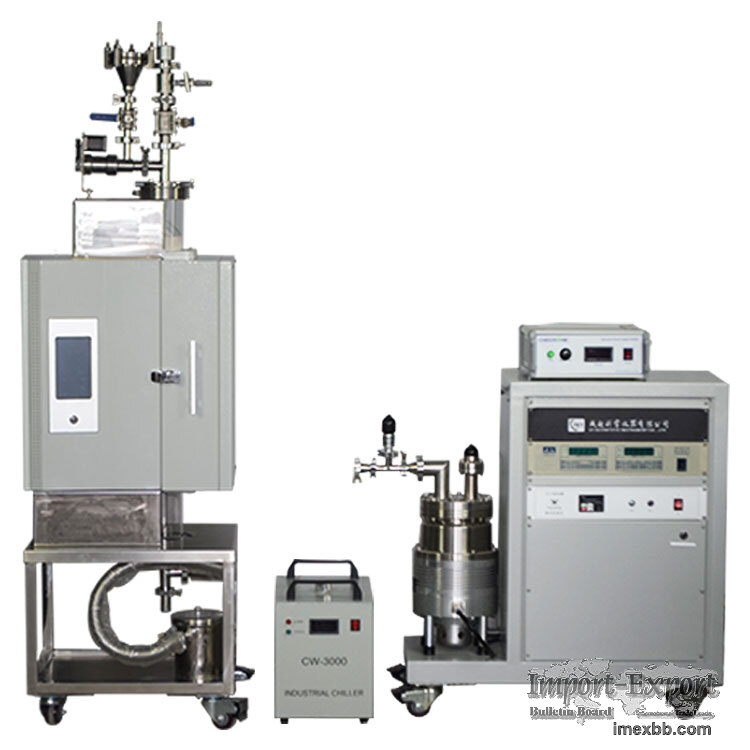

Vertical Tube Furnace with Ultrasonic Spray Nozzle and Solid Powder Feed

Ultrasonic Spray Pyrolysis System within 4" Vertical Tube Furnace with Spray Nozzle
and Volumetric Solid Powder Feeder is Two Heating Zone Split Vertical Tube Furnace
with vacuum sealed 100mm diameter quartz tube.It can introduce gas flow or liquid/
water atomization to the heating furnace, also be used for PVD, CSS or CVD coating.
Two precision temperature controllers provide 30 segments heating and cooling
program with +/- 1C accuracy independently. The vertical tube furnace is installed
in a heavy-duty mobile cart for easy moving.

►Furnace Structure
Two Heating Zone Split Vertical Tube Furnace for longer and uniform
constanttemperature zone
The ultrasonic spray nozzle can make liquid/water atomized via gravity and low-
pressure compressed air.
Volumetric Feeder for feeding solid powder into a furnace to form core/ shell
structure
►Upgrade
If you need a horizontal furnace, we will change to the same specification tube
furnace at no cost.You could upgrade from 40KHz to 3 KW and 120 KHz,  Ultrasonic
Spray Nozzle at extra cost
►Power for Furnace 6KW (total) / each zone: 3KW
►Voltage AC 208-240V Single Phase, 50/60 Hz
►Max. Temperature 1200°C (<1 hr) each zone
►Continuous Temperature 1100°C for each zone
►Max. Heating Rate <= 20°C/min.
►Temperature Accuracy +/- 1°C
►Tube Size and Materials
One 1000mm length quartz tube is included,OD: 100 mm, ID. 95 mm
Foam ceramic blocks with alumina coating are included, which is hanged on top of
flange to protect O-ring damaged by heat radiation
►Heating Zone Length：200mm ( bottom )//200mm ( top )//400mm ( total )
►Constant Temperature Zone Constant temperature zone: 300 mm (+/-1°C) if
two heating zones are at the same temperature
►Temperature Controller
MET certified 30 programmable segments for precise control of heating rate,
cooling rate and dwell time.
Built in PID Auto-Tune function with overheating & broken thermocouple broken
protection.
Over temperature protection and alarm allows for operation without attendant(s).
RS485 Communication Port.
►Vacuum Sealing Flange
Two stainless steel flanges with vacuum gauge and valves included
A hook ring is welded inside the top flange for hanging thermal block or crucible
by wire
Gas outlet ( vacuum port ) on top with 1/4" barb connector.
Gas inlet on bottom with 1/4" barb connector
►Vacuum Level
10E-2 Torr by mechanical vacuum pump
10E-5 Torr by molecular pump
Leak rate < 5 mTorr / min.
►Heating Element 1300°C Fe-Cr-Al Alloy doped by Mo
►Dimensions
550mm(L) x 380mm(W) x 520mm(H) exclude mobile cart
600mm(L) x 600mm(W) x 1200mm(H) install with mobile cart
►Net Weight About 80 kg (excluding mobile cart)
►Warranty One year limited warranty with lifetime support

Minimum Order: 1 sets
