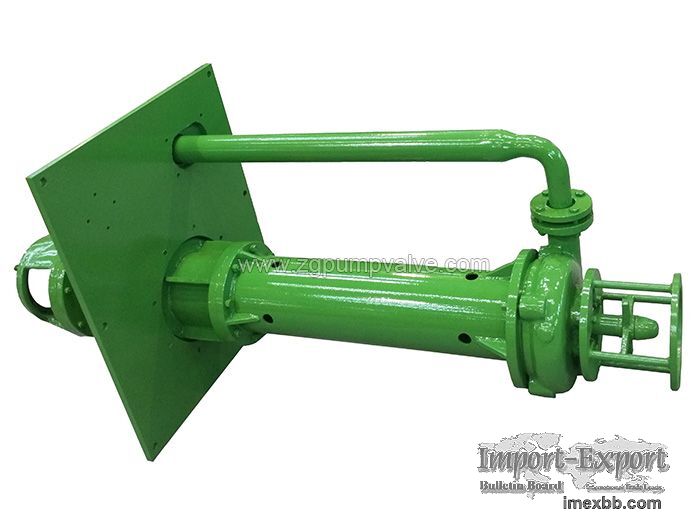

Vertical submerged slurry pump

Vertical submerged slurry pump
ZLJ vertical submerged slurry pump is a patent product of Zigong Pump, which
adopts a stirring impeller at the pump inlet to solve the problem of quick
sedimentation of medium. ZLJ series is cantilever and double-bracket structure,
which increases the reliability and stability during operation. More than 10
kinds of materials are available for different applications. It is suitable to
pump fluids with suspended particles, and is widely used in industries of power
plant, chemical, petrochemical, mines and cement..
Vertical Slurry Pump Parameters
Flow rate: Q=9～460 （m³/h）
Total head: H=10～65 (m)
Speed: n=1450rpm
S.g.: γ ≤1.5
Temperature: T=0～80℃
Pump diameter: 50～200mm

ZGPV Vertical Slurry Pump Features
An updated vertical submerged slurry pump conforms to JB/T8096-1998.
Adopts a stirring impeller at the pump inlet to solve the problem of quick
sedimentation of medium.
Cantilever and double-bracket structure, increases the reliability and
stability during operation.
Slow speed and low linear speed design for heavy slurries to reduce the
abrasion.
Different anti-abrasive materials for various applications.
Especially suitable for pumping the fluids with quick sedimentation solids.

Structure
MOC
Single casing structure, casing is connected to the connecting pipe, and
connecting pipe is connected to the bearing housing, and bearing housing is
connected to the baseplate.
Cylinder type bearing housing with rolling bearings.
Restrictor seal without external flushing water.
Transmission: Direct coupled, variable frequency drive.

Material of flow passage components based on pumped medium: Cr26 wear-
resistant material, or Cr30, CD4MCu wear-resistant and anti-corrosion material,
and other general wear-resistant material, such as gray cast iron 200, Z-1#, C-
15, ZG40Mn2.
Material of outlet pipe, base etc. parts: Q235-A.

ZGPV Vertical Slurry Pump Application
Sewage conveying of power plant, mining, cement, steel, non-ferrous metal.
Fluid conveying of aluminum oxide producing process.
Slurry conveying of sedimentation basin of other industries.
