Vertical pipeline centrifugal oil pump

YG Vertical pipeline centrifugal oil pump

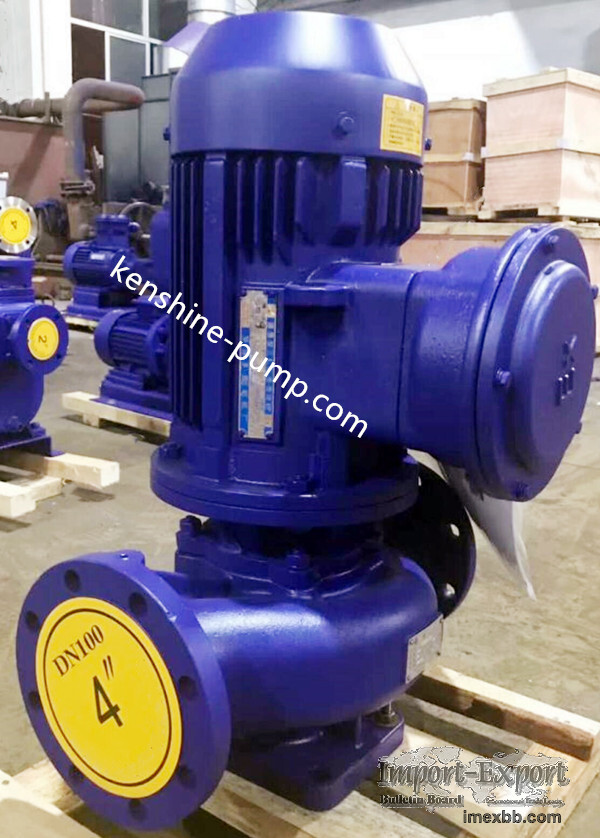

YG type vertical pipeline centrifugal oil pump (referred to as pipeline pump) is a
derivative of ISG type vertical pipeline centrifugal pump. This type of pumps are
driven by explosion-proof motor (default explosive-proof grade d Ⅱ BT4) and with
bronze impellers. The pump can transport light oils such as gasoline, kerosene,
diesel oil etc. petroleum product without solid particles (abrasive matter). And
the temperature of medium delivered is from - 20 ℃ to + 120 ℃.

Features:

1. The pump is a vertical structure, the inlet and outlet caliber is the same and
locate in the same center line. It can be installed in the pipeline like a valve
with compact appearance and small volume. When the motor is with cover, the pump
can be placed outdoor.

2. The impeller is directly mounted on the extended shaft of the motor with short
axial dimensions.

3, the shaft seal adopts mechanical seal. According to the medium, the pump can
have different material configuration so as to effectively extend the service life
of mechanical seal according to the actual situation.

4, convenient installation and maintenance, no need to remove the pipeline system,
as long as the pump conjoined seat nut can be extracted for all the rotor parts.

5. Parallel operation can be adopted according to the flow usage requirements.

6. Vertical and horizontal pumps can be installed according to the requirements of
pipeline layout.

Application

In refineries, chemicals, and petrochemicals, for the transportation of light
petroleum products that do not contain solids (abrasives matter).

Working conditions:

1. Inlet pressure ≤ 0.6mpa.

2. Ambient temperature <40℃, relative humidity <95%.

3. The volume content of solid particles in the conveying medium shall not exceed
0.1% of unit volume, and the particle size shall be less than 0.2mm.

Note: if the medium with small particles, please specify when ordering, so that we
can choose relatively wear-resistant mechanical seal.

Minimum Order: 1 sets
