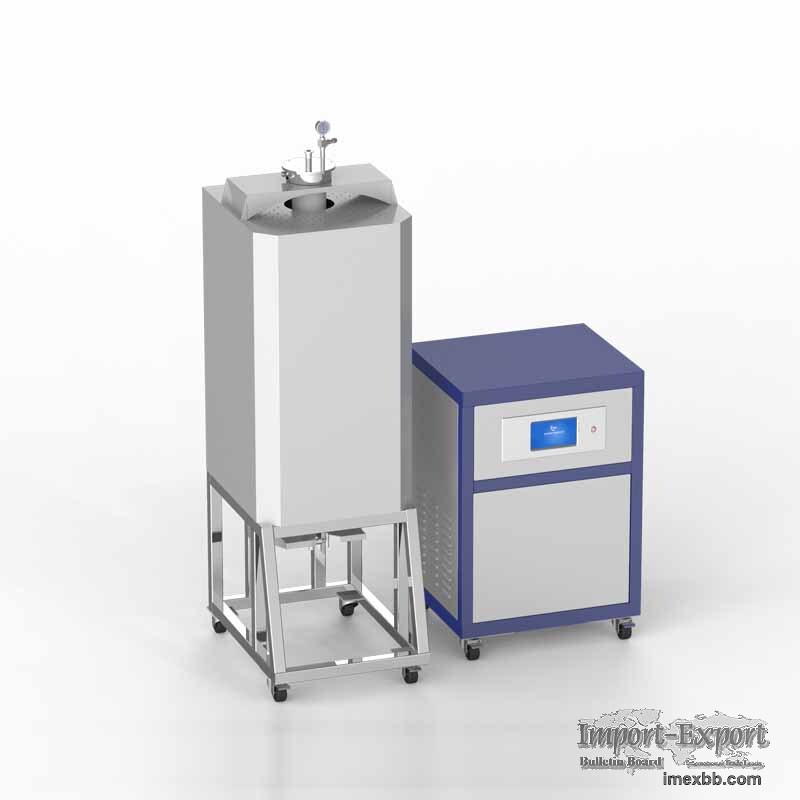

vertical fluidized bed tube furnace for powder experiments

Vertical fluidized bed tube furnace CY-T1700-100I-T-V

The CY-T1700-100I-TV is a fluidized bed vertical CVD system specially designed for
powder experiments. The tube is a high-purity corundum tube with a microporous
ceramic plate embedded inside the furnace tube. The powder can be placed on the
microporous ceramic plate, gas is introduced from the lower end of the furnace
tube, and the sample powder was suspended in the heating zone through a microporous
ceramic plate to carry out an experiment. The instrument adopts advanced PID
intelligent temperature control, and the temperature control accuracy is ±1℃. The
control interface is a 7-inch high-definition true color LCD touch screen, graphic
display, visual operation interface, easy to operate and intuitive to use, can
greatly improve your experimental efficiency.

Application range:
It is mainly used in powder experiments.

Technical parameters:
Model: CY-T1700-100I-T-V
Furnace tube material: High purity alumina
Furnace tube diameter: 100mm
Furnace tube length: 1200mm
Furnace chamber length: 900mm
Heating zone length: 600mm
Constant temperature zone: 300mm
Operating temperature: ≤1700℃
Temperature control accuracy: ±1℃
Temperature control mode: 30 or 50 segment program temperature control
Display mode: LCD touch screen
Sealing method: 304 stainless steel vacuum flange
Flange interface: 1/4" ferrule connector (Ø8 pagoda-shape connector); KF16 vacuum
port
Vacuum: 4.4E-3Pa
Power supply: AC:220V 50/60Hz
Rated power: 10KW

Minimum Order: 1 sets
