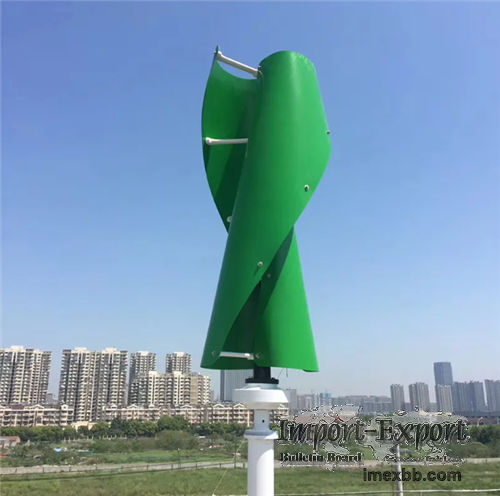

Vertical Axis Tulip Type

Model name OTO-F700-V1 OTO-F1100-V1 OTO-F1100-V2 OTO-F1100-V3
OTO-F1700-V1 OTO-F1700-V2 OTO-F2000-V1 OTO-F2000-V2 OTO-F4000-V1
OTO-F4000-V2
Output voltage DC12V DC12V DC12V/24V DC12V/24V DC24V/48V
DC24V/48V DC24V/48V DC24V/48V DC24V/48V DC24V/48V
Rated power 100W 100W 200W 300W 500W 600W 1000W 1500W
2000W 3000W
Blade height 0.7 1.1 1.1 1.1 1.7 1.7 2 2.0
4 4
Wind wheel diameter 0.38 0.52 0.52 0.52 0.52 0.52 1.2
1.2 2.2 2.2
Start the wind speed 1.2m/s 1.2m/s 1.2m/s 1.2m/s 1.5m/s 1.5m/s 1.5m/s
1.5m/s 1.8m/s 1.8m/s
Cut in the wind speed 2.0m/s 2.0m/s 2.0m/s 2.0m/s 2.5m/s 2.5m/s 2.5m/s
2.5m/s 2.5m/s 2.5m/s
Rated wind speed 13m/s 11m/s 11m/s 11m/s 11m/s 11m/s 11m/s
11m/s 11m/s 11m/s
Maximum safe wind speed 40m/s 45m/s 45m/s 45m/s 45m/s 45m/s 45m/s
45m/s 45m/s 45m/s
Weight 13kg 24kg 26kg 32kg 124kg 130kg 160kg 260kg 550kg
700kg
