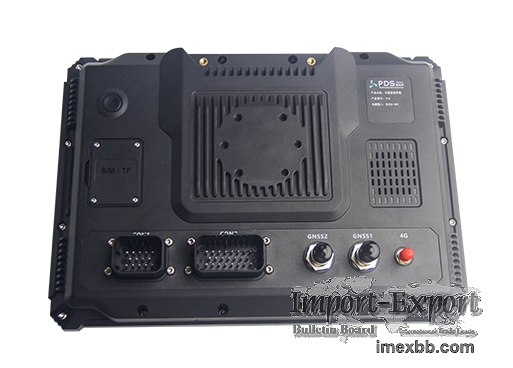

Vehicle Mount Computer

Vehicle mount computer is a sturdy and durable in-vehicle computer, which is
suitable for various vehicles to work in complex and harsh environments. It is
suitable for commercial vehicles such as agricultural tractors, excavators,
loading and transport trucks, engineering tower cranes, self-driving mining
trucks, large trucks, buses, and taxi-hailing vehicles. It uses a car-grade 64-
bit processor, an ANDROID operating system, and has an IP65 waterproof and
dustproof rating. At the same time, through the optional built-in centimeter-
level positioning module, the T10 can meet the automatic or semi-automatic
driving needs of agricultural, engineering, or mining vehicles.

Vehicle Mount Computer Lists

T10 (10.1 inch) Vehicle Mount Computer
T10 is a vehicle mount computer that uses an AEC-Q100 car chipset, which is
robust and reliable with an IP65 rating and can support high-precision
automatic driving.

T101 Vehicle Mount Computer (for Agriculture)
T101 is a 10.1-inch IP65-grade vehicle mount computer, using a car-grade 64-bit
processor, which can support UNICORE's UM482/UM980 or UBLOX's F9P RTK module to
realize automatic driving of agricultural vehicles

T102 Vehicle Mount Computer (for Construction)
T102 is a 10.1-inch IP65-level in-vehicle computer, using a car-grade 64-bit
processor, which can support hand-held vehicle intercom, and meet the audio and
video communication between fleets, vehicles and the background.

Highlights of T102 Vehicle Mount Computer (for Construction)


T101 is suitable for the information management of mining vehicles. Installing
T101 display control terminal on the mining vehicle can effectively carry out
vehicle dispatching and management operations.

Support RTK centimeter-level positioning function

Automotive-grade 64-bit processor, 4-core A53@1.5GHZ, processor passed AEC-
Q100;

Support ANDROID 10 or LINUX+QT5 system

10.1-inch use 1280*800 resolution IPS screen, 10.1-inch brightness is greater
than 500CD/M2;

ISO7637-2 power standard

The Benefits of Vehicle Mount Computer
The Benefits of Vehicle Mount ComputerFeature Highlights 01
1) On-board chip 64-bit processor, 4-core Cortex A53@1.5GHZ, processor passed
AEC-Q100 test

2) The same product can support ANDROID 10 or LINUX+QT5 system to meet
different application requirements

3) Support RTK high-precision centimeter-level positioning function

4) Up to 4 channels of 720P cameras can be previewed at the same time

The Benefits of Vehicle Mount Computer
The Benefits of Vehicle Mount ComputerFeature Highlights 02
5) It can support up to 2 channels of the CAN network, and the CAN rate can
support 500kbps/250kbps switching

6) Support Ethernet function and external hand-held public network intercom
function to meet the needs of fleet networking operations

7) Support 9-36V power input, support ISO7637 vehicle power supply standard,
compatible with various surge vehicles

8) IP65 protection grade to meet the needs of complex and harsh working
environment

Vehicle Mount Computers Common Applications
PDS vehicle mount computer are widely used for agriculture tractor autonomous
driving. Both 7 inch and 10.1 inch mobile data terminal can meet different size
agriculture tractor. Agriculture tractor autonomous driving helps to improve
farming efficiency a lot.

FAQs of Vehicle Mount Computers
How Do I Install the Vehicle Mount Computer into the Car?
Pudasi's onboard computers all support the installation of standard ram mount,
and different types of ram mounts can be selected to meet.

How Does the Vehicle Mount Computer Realize Automatic Switching On and Off
Pudasi's onboard computer supports ACC detection and on-off. It is necessary to
ensure that the onboard ACC signal is correctly connected with the pin of the
corresponding line of the onboard computer.
As one of the most professional mobile data terminal suppliers, we provide
mobile data terminal, rugged mobile data terminal, durable tablet, etc. For
more information, please feel free to contact us!
