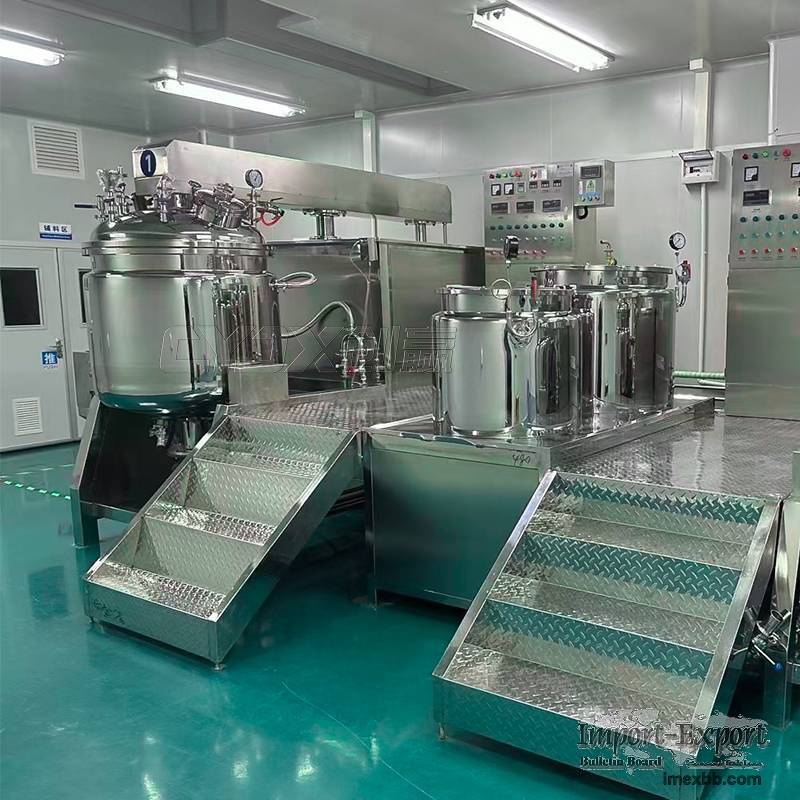

Vacuum Toothpaste Making Homongenizing Mixer Cosmetic Lotion Cream Mixer Bl

Product Description:

Vacuum emulsifier emulsification homogenization is mainly used to make high-
viscosity emulsions, especially creams, ointments and lotions. Use the
emulsifier to complete the functions of heating, cooling, dissolving,
emulsification and vacuum defoaming at one time; the raw materials can be
fully
crushed, mixed, emulsified, and homogenized to increase the gloss and
stability
of the product.

Product parameters:

Capacity (L) Homogenizer Agitator Vacuum pump Heating system
power (kw) speed (rpm) power (kw) speed (rpm) power (kw)
Limit vacuum Electric heating (kw) Steam heating (Mpa)
5 0.55 0-3600 0.4 0-65 0.37 -0.1 6 0.2
10 1.1 0-3600 0.55 0-65 0.37 -0.1 6 0.2
20 1.5 0-3600 0.55 0-65 0.37 -0.1 9 0.2
50 3 0-3600 0.75 0-65 0.75 -0.1 12 0.2
100 4 0-3600 1.5 0-65 1.5 -0.1 24 0.2
200 5.5 0-3600 1.5 0-65 2.2 -0.1 28 0.2
300 7.5 0-3600 3 0-65 2.2 -0.1 32 0.2
500 11 0-3600 4 0-65 4 -0.1 50 0.2
1000 15 0-3600 5.5 0-65 4 -0.1 54 0.2
2000 18.5 0-3600 7.5 0-65 5.5 -0.1 recommend steam heating
0.2
5000 22.5 0-3600 15 0-65 7.5 -0.1 0.2
The parameters for reference only, all the machines can be customized
accordingly.

Main Features:

1.Stainless Steel Operating Platform. Contact Part Material: SUS316L
Stainless
Steel. Outside Part:SUS304 Stainless Steel. Mirror-polished tanks and pipes.
Meeting GMP standards.
2. The whole machine has a reliable sealing (using German Bergman mechanical
seal, Japanese NSK rolling bearing). Electrical components are purchased
from
well-known foreign companies.
3. Higher Homogenization Efficiency & Better Product Applicability: The
multiple-layer shear structure and unique grinding process fully ensure the
fine material emulsification.
4. Using advanced frequency converter to control the mixing speed to meet
different production needs.
5. The entire process is carried out under vacuum conditions to prevent the
material from generating bubbles after high-speed stirring. It can meet the
requirements of sanitation and sterility.
6. The tank can be designed to heat or cool materials, according to
production
requirements.
7. Advanced PLC control system can be used to fully control the addition of
materials, control the speed and time of mixing and homogenization. It can
print the above data (optional).

Minimum Order: 1 sets

Click to Enlarge
