VACUUM GENERATOR WITH FAST BLOW-OFF

AEVC Series
Short action cycle
Small size, lightweight, especially suitable for high-speed working
Could be fixed with a suction cup and connector directly
Reduce noise greatly
PACKAGING(Carton) For Vacuum Generator with Fast Blow-off ForMETA SHEET(Thick
Metal Plate) For Vacuum Generator with Fast Blow-offAUTO MOTIVE For Vacuum
Generator with Fast Blow-off

FEATURES
VACUUM GENERATOR WITH FAST BLOW-OFF
Vacuum Generator with Fast Blow-off
Fast suction and blow-off
Main body is made of plastic
Suitable mounting bracket
With built-in silencer

ELECTION GUIDE

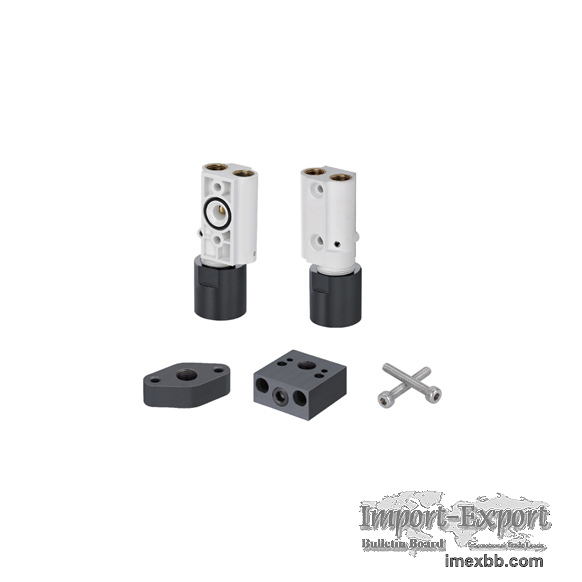

AEVC SERIES BASIC VACUUM GENERATOR
AEVC 10 - S - G2F
 ①    ②   ③    ④


① Series ② Nozzle diameter ③ Mounting type ④ Mounting
thread
AEVC 10 - φ1.0mm Nil- Without mounting block Nil- Without thread
S- Vertical mounting block G1F- G1/8 female thread
L- Lateral mounting block G2F- G1/4 female thread
B- Oval vertical mounting block

Technical parameters

Model Rated air
supply pressure
bar RatedMax.
vacuum level
-kPa air
supply pressure
bar Max.
vacuum level
-kPa Max.
vacuum flow
NL/min Air consumption
NL/min Noise
level
dB(A) Weight
 g
AEVC10 4.5 85.0 81 35 48.5 73.5 64

SPECIFIC
VACUUM GENERATOR WITH FAST BLOW-OFF

Vacuum flow(NL/min) at different vacuum levels(-kPa)


Model Air supply pressure
bar Air
consumption
NL/min 0 10 20 30 40 50 60 70 80
Max.
vacuum level
-kPa
AEVC10 4.5 48.5 35.0 32.0 30.0 24.0 18 10 6.5
5.5 3.3 85


Evacuation time(s/L) to reach different vacuum levels(-kPa)


Model Air supply pressure Air consumption NL/min 10 20 30
40 50 60 70 80 Max. vacuum level
-kPa
AEVC10 4.5 48.5 0.14 0.3 0.54 0.81 1.19 1.7 2.42
4.27 85


DIMENSIONS
VACUUM GENERATOR WITH FAST BLOW-OFF

Mounting accessory selection
Item Model
S type Vertical mounting block-G1/4 AEVC-S-G2F
L type Vertical mounting block-G1/4 AEVC-L-G2F
B type Oval vertical mounting block-G1/8 AEVC-B-G1F
B type Oval vertical mounting block-G1/4 AEVC-B-G2F
