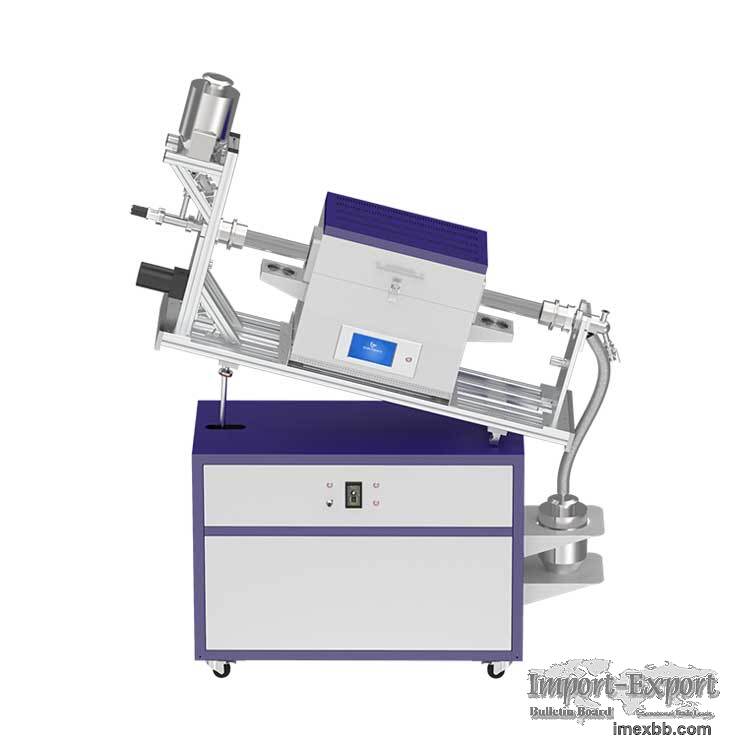

Vacuum Atmosphere Rotary Tube Furnace With automatic feeding and collecting

Vacuum Atmosphere Rotary Tube Furnace With automatic feeding and collecting
equipment

The tube furnace CY-O1200-R100IT-AF is a rotatable tube furnace with automatic
feeding and collecting equipment. It adopts double-layer air-cooling structure, the
surface temperature of the furnace body is ≤60℃, and it adopts high-purity
alumina polycrystal. The furnace made of high purity alumina polycrystalline fiber,
and the heating element is imported heating wire, which can prolong the service
life of the furnace. The structure of the whole machine is reasonable, the shape is
unique, the operation is simple and easy to learn. It is an ideal product for
sintering, melting and analyzing metals, non-metals and their compounds under
multiple atmospheres or vacuum conditions. The furnace tube of the device can be
rotated at a speed of 0 to 10 rpm, and the furnace body can be inclined with
respect to the plane at an angle of 0 to 10° to complete the collection process
after the reaction.

Technical Parameters
Voltage: AC220V, 50Hz
Power: 7.5 kW
Furnace Structure: Double-layer air-cooling structure, keep the temperature≤60℃
Tube material: High purity quartz tube
Heating zone length: 400mm
Tube size: φ100*1500mm
Heating element: import alloy wire
Max temperature: 1150℃
Working temperature: ≤1050℃
Temperature stability: ±2℃
Heating rate: suggest 10℃/min
Temperature control accuracy: ±1℃
Thermocouple: K type
Temperature controller:
With touch screen control, multiple heating curves can be pre-stored.
The heating curve is automatically controlled by the program PID.
Each curve contains 30 programmable steps, which can precisely control the heating
rate, cooling speed and dwell time.
Built-in PID automatic adjustment function, thermal disconnection thermocouple
disconnect protection, over temperature protection and alarm.
Automatic feeder:
mounted on the furnace via vacuum sealed.
Feed rate ≤97cm3/min, gas can be inleted to protect the material.
Automatic gather tank: capacity 5L, use for gather the material after reaction,
gas can be inlet to protect the material.
Tube rotation speed: 0~10 rpm
Furnace tilt angle: Left 0~10°
Warranty: 12months

Minimum Order: 1 sets
