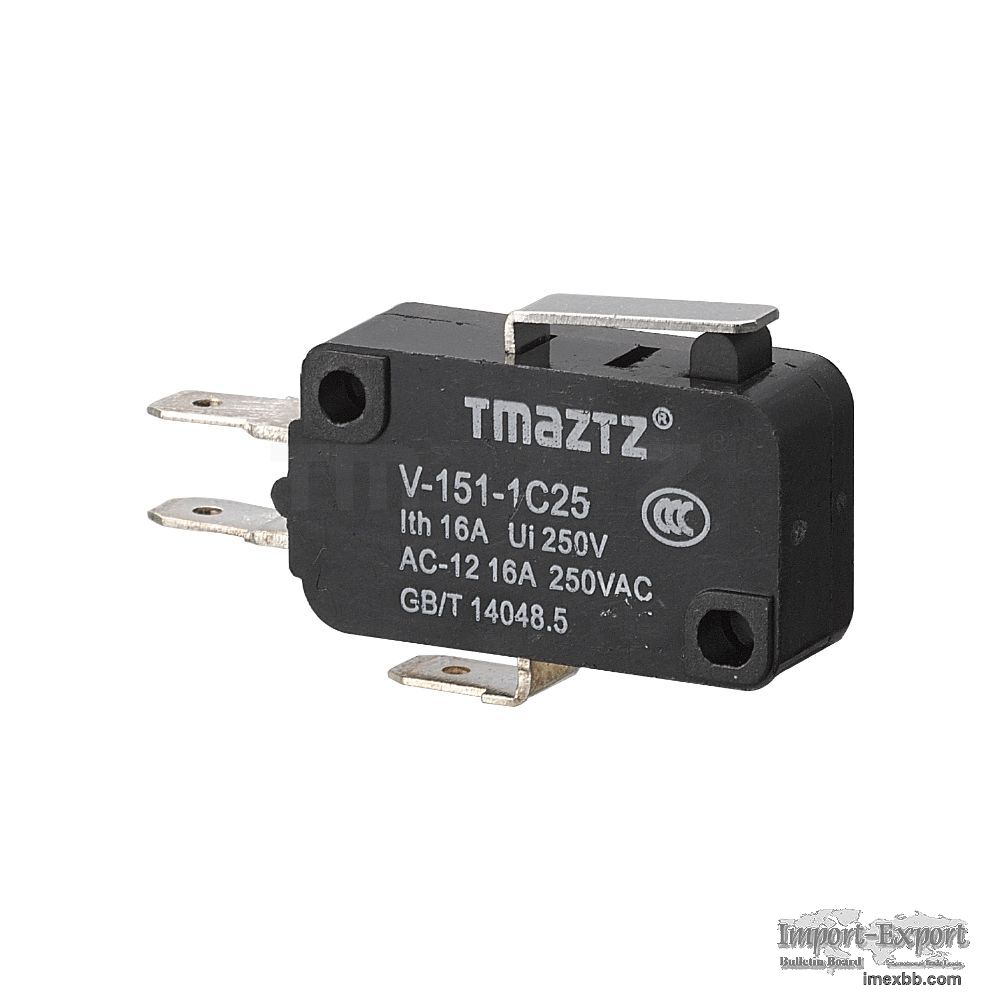

V-15-1C25 basic plunger model Micro Switch

■ High accuracy of action position;
■ Good shock resistance, maximum 1000m/s2;
■ High-strength shell, when mounting, the plastic shell can withstand
torsional moment of 6kgf.cm without break.

Ratings
Item  nominal voltage Noninductive Load (A) Inductive Load (A)
Inrush Current(A)
Spec. Resistance Load Lamp Load Inductive Load Motor Load
NC NO NC NO NC NO NC NO
NC NO
16A 250VAC 16 2 10 3 40max.
8VDC 16 4 10 6
30VDC 10 4 10 4
125VDC 0.6 0.1 0.6 0.1
250VDC 0.3 0.05 0.3 0.05

Characteristics
Operation speed 0.1mm~1m/s( Button type)
Operating frequency Electrical：20 operations/min

Insulation resistance 100mΩ above(at 500VDC)
Contact resistance 15mΩmax. (initial value)
Withstand voltage Non-continuous terminals 1,000VAC, 50/60Hz
Continue1min
current-carrying and non-current-carrying metal parts,
Between terminal and earthing 2,000VAC, 50/60Hz  Continue1min
Vibration Misoperation 10 to 55Hz,1.5mm pairs swing
Shock Misoperation Max 300m/S2(about 100G)
Temperature -10~+65℃(no ice)
Humidity Under 85%RH(+5~+35℃)
Weight Approx 6.2g (button type)
Electrical life Above300000

Operating Characteristics
Operating Characteristics Model V-15 V-151 V-152 V-153 V-154
V-155 V-156
Operating force OF  (Max) 1.96N 1.96N 1.23N 0.69N 1.23N 2.35N
1.23N
Release force RF  (Min) 0.49N 0.49N 0.14N 0.06N 0.14N 0.49N
0.14N
Pre-travel PT  (Max) 1.2mm 1.6mm 4.0mm 9.0mm 4.0mm 1.6mm
4.0mm
Over-travel OT  (Min) 1.0mm 0.8mm 1.6mm 2.0mm 1.6mm 0.8mm
1.6mm
Movement differential MD (Max) 0.4mm 0.6mm 1.5mm 2.8mm 1.5mm
0.6mm 1.5mm
Operational position OP 14.7±0.4mm 15.2±0.5mm 15.2±1.2mm
15.2+2.6mm
15.2-3.2mm 18.7±1.2mm 20.7±0.6mm 20.7±1.2mm
