USB MIPI DVP OEM Camera Modules Customizable Vision Solution Auto Focus

Product Description
USB MIPI DVP OEM Camera Modules Customizable Vision Solution Auto Focus

OEM camera modules China Best Manufacturer Price Customizable Vision Solution USB
MIPI DVP Camera Module



OEM Camera Modules Customization Process



Your Idea--Confirm the deails--Establish project--R&D--Sample modification--Confirm
the final sample--Mass production--Shipping



1 According to the actual application scene and functional target, the camera
module needs to comprehensively consider the product structure size, image
definition, frame rate, lens angle, lighting scene and other factors to choose the
appropriate SENSOR,lens and solution. Need to be customized.These product is only
for customer testing DEMO, please contact our customer service to inform you which
product you want the camera module to be used on? What functions are implemented?
Any special requirements? According to the cost target and other comprehensive
Factors, we help you choose the appropriate SENSER+lens scheme, and then design the
product PCB or FPC according to the structural requirements.



2 Example: a customer prepared to do a person identify comparison machine. If it is
used in the indoor with good light , we suggest the customer to use ordinary lens
and SENSOR. If there is bad light or backlight, we suggest the customer to use WDR
wide dynamic SENSOR. If the customer has very high security requirements, we
recommend that the customer use WDR and the black and white infrared binocular
recognition camera module. When the client determines the SENSOR and lens scheme,
the parameters such as color, white balance and Saturation should be adjusted
according to the actual environment to achieve the target effect.



Specification




Model No
SNS-OEM
Sensor
Omnivision/SONY/ON Semiconductor/GalaxyCore...
Pixel
0.3MP 1MP 2MP 3MP 4MP 5MP 8MP 13MP 16MP or Above
Compression format
MJPG / YUY2/H264
Resolution & Frame rate
Optional
Shutter Type
Electronic rolling shutter/Global shutter
Focus type
Fixed focus/Auto focus
S/N ratio
TBDdB
Dynamic range
TBDdB
Sensitivity
Optional
Inter , face type
USB2.0/3.0 MIPI DVP
Adjustable parameter
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure
Lens FOV
Optional
Audio frequency
Support
Power supply
USB BUS POWER
Power consumption
DC 5V, 100mA
Main chip
DSP/SENSOR/FLASH
Auto Exposure Control (AEC)
Support
Auto White Balance (AEB)
Support
Auto Gain Control (AGC)
Support
Dimension
Customizable
S , torage temperature
-20°C to 70°C
Operating temperature
0°C to 60°C
USB cable length
Default
Support OS
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

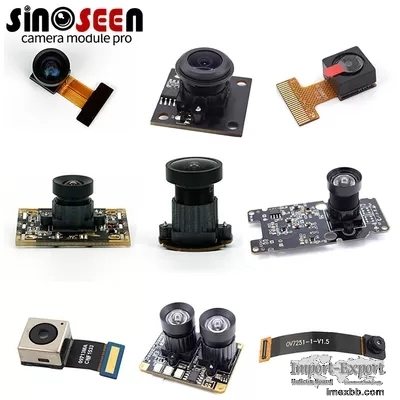

USB MIPI DVP OEM Camera Modules Customizable Vision Solution Auto Focus 0USB MIPI
DVP OEM Camera Modules Customizable Vision Solution Auto Focus 1

Click to Enlarge
