USB Interface Flatbed Inkjet Screen Engraver Machine 360/508/720dpi Resolution

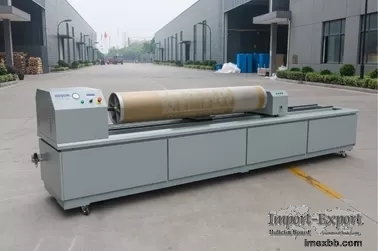

DOSUN BLUE-ROTARY UV Laser Engraver is a new generation of CTS (computer to
screen) equipment. By using DOSUN UV-FINATM Laser Engine, it can directly image
on the sensitive layer.

By using UV-FINATM Laser Engine technology, sensitive emulsion, engraving
technology is basically same with the traditional technology, improving the
precision and efficiency.



Feature:



Using advanced high-power UV laser and fiber dot-matrix, BLUE-ROTARY UV Laser
Engraver is the fastest in engraving industry.
UV laser engraving is a low carbon, environment protection technology.
No consumable items: Do not need film, ink, wax
UV laser engraving is a “friendly” engraving technology.The manufacture
process is not only as same as traditional process, but also more convenient.
Basing on the design principle of “convenient, practical, reliable,
advanced”, in the process of engraving image, the equipment provides monitor
display, operation help and so on. By using the software and hardware, it all
can reflect a “friendly” attitude to operational workers.
Specification

Model BR2500 BR3000 BR3500
Screen Breadth 2500mm 3000mm 3500mm
Screen Repeat 640mm(standard)

820mm/914mm/1018mm(optional , )

Resolution 360/720dpi (300/600dpi；254/508dpi customizable)
Registration Accuracy ±0.02mm
Imaging Light Source 405nm laser diode LD
Engraving Speed 6～8min./m(640mm)
Acceptable File Format BMP/TIFF
Interface USB
Power 1.5KW/220V, 50Hz
Dimension 3950mm×750mm×1220mm(BR2500)

4450mm×750mm , ×1220mm(BR3000)

4950mm×750mm×1220mm(BR35 , 00)

Net Weight 1000kg(BR2500) 1100kg(BR3000)

1 200kg (BR3500)



Process

Wash screen→ Mixing glue→ reshaping→ coating→ Low temperature baking→
laser Engraving→ Developing→ Retouching screen→ High temperature baking



Compare to other brand

Compare to Image and any other brand in China

The whole machine including software, Dosun developed by ourselves. No need any
other support. (image change the software from some other company , you will
find it is difficult to operate, and dosun is very easy)
Service team, we have mature service team in China. Also our local service
support from Agent. Any time you meet problem, we reach to you in time.
Use of high-precision rack transmitting design, fast return back to the start
bit after finish engraving. Easy erection, unlimited screen length.
Lens which developed by Academic Divisions of the Chinese Academy sciences.
Balancing guild rail, make sure from 400mm t- 2500mm, totally automatic adjust.
And mistake between 1 to100mm. (As we know, Image cannot print two dot. Their
software will bigger the dot when print out. So such kind of fine designs they
cannot print well)
Tailstock with manual and electric, default electric.
And all the important parts we use famous brand in the world, if such low
price, they must just use Chinese local brand.
Repeat choice between 400mm to 2500mm, integrate all in one. With lens safe
anti-collision system, intelligently identify current repeat, make sure proper
printing.
Adopting parallel guide rail, professional assembly measurement and control,
ensure straightness tolerance of rail within 20um, and ensure high imaging
quality.
Rotate servo motor or general asynchronism motor, wide speed range, test with
thermal pater.
Water cooling and semiconductor cooling system, optional.
360,720,1440,508,1016 dpi, optional.
Paths of diode 16,24,32 optional.
High precision encoder from Japan.
