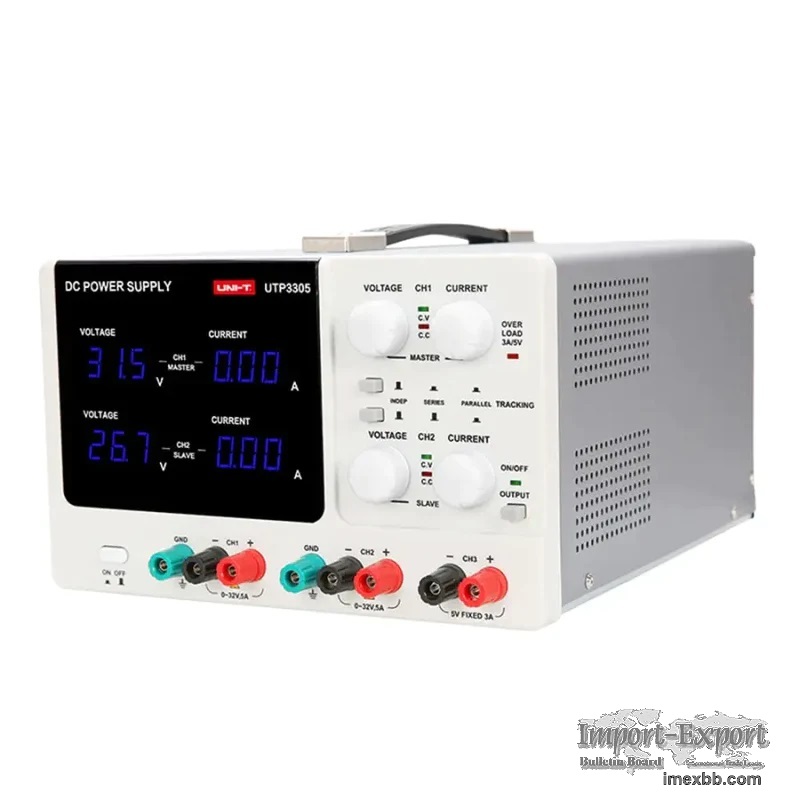

UNI-T UTP3305 Regulated Switching DC Power Supply

UNI-T UTP3305 Dual Channel DC Power Supply Regulated Switching

Features：

Dual channel, two circuits of adjustable output voltage 0~32V and one
circuit of fixed voltage 5V.
Master-slave tracking, constant voltage and current, Ⅰ, Ⅱ circuit can be
used for master-slave tracking and used in parallel or in series.
Forced ventilation, temperature control cooling system. When the temperature
reaches 65℃, the device dissipates heat automatically.
Display mode: LED digital tube display,can show voltage and current
simultaneously.
Low ripple, low noise
High regulation: 0.01>#/p###
Output ON/OFF control
Constant voltage and constant current operation
Optional European standard output terminal
Overload protection, reverse polarity protection

Specification :
Type: UTP3305
Channels: CH1, CH2, CH3
Power Supply：Input voltage: 220VAC/110VA;
Frequency: 50Hz/60Hz
Product Color: White+Grey
Product Weight: About 9 kg
Product Size (W×H×D): 260mm × 176mm × 317mm
Standard Accessories: National standard power cord, output cable
Standard Package: Gift box, user manual
Standard Package Quantity: 1 pcs
Standard Package Size (W×H×D): 430mm × 400mm × 255mm
Standard Package Gross Weight: 10K

Minimum Order: 1 pieces
