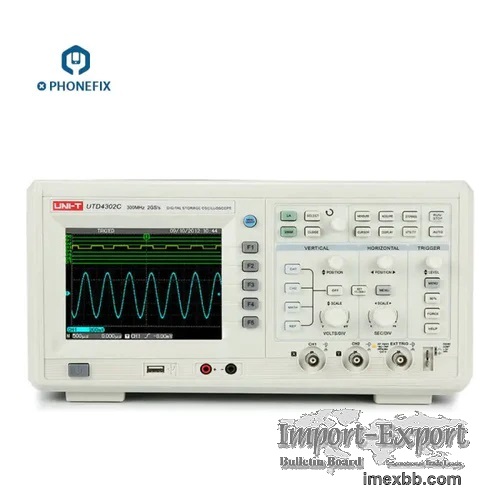

UNI-T UTD4302C 2 Channels Digital Storage Oscilloscope

UNI-T UTD4000C Series: Digital Storage Oscilloscopes 2 Channels 100MHz /
200MHz / 300MHz 2GS/s

Optional Type :
Option 1: UTD4061C
Option 2: UTD4102C
Option 3: UTD4202C
Option 4: UTD4302C

Product Features :
2GS/s real-time sampling rate;
Dual time base function; unrivaled waveform detail observation and analysis
capabilities;
16-channel logic analyzer; 3½ digital multimeter;
Unique envelop sampling feature with direct visual display of carrier wave
details after amplitude modulation;
Quick waveform acquisition and color change function that visually
describes the strength of waveform;
Supports plug-and-play USB storage devices and capable of communicating
with a computer;
USB drive system software upgrade;
Built-in FFT and Multiple waveform mathematics functions (including add,
subtract, multiply and divide);
Edge, Video, Pulse Slop and Alternate trigger functions.

Product Specification :
Model: UTD4302C
Channels: 2
Bandwidth: 300MHz
Sample Rate: 2GS/s
Rise Time: ≤1.2ns
Memory Depth: 24kpts
Waveform Acquisition Rate: ≥2,000wfms/s
Vertical Sensitivity: 1mV/div~10V/div
Timebase Range: 5ns/div~50s/div
Storage: Setup, Wave, Bitmap, CSV
Trigger Modes: Edge, Plus, Video, Slope, Alternate, LA
Interface: USB Device, USB Host, Pass/Fail, LA Interface, Multimeter
Interface

Model: UTD4062C
Channels: 2
Bandwidth: 60MHz
Sample Rate: 2GS/s
Rise Time: ≤5.8ns
Memory Depth: 24kpts
Waveform Acquisition Rate: ≥2,000wfms/s
Vertical Sensitivity: 1mV/div~10V/div
Timebase Range: 5ns/div~50s/div
Storage: Setup, Wave, Bitmap, CSV
Trigger Modes: Edge, Plus, Video, Slope, Alternate, LA
Interface: USB Device, USB Host, Pass/Fail, LA Interface, Multimeter
Interface

Model: UTD4102C
Channels: 2
Bandwidth: 100MHz
Sample Rate: 2GS/s
Rise Time: ≤3.5ns
Memory Depth: 24kpts
Waveform Acquisition Rate: ≥2,000wfms/s
Vertical Sensitivity: 1mV/div~10V/div
Timebase Range: 5ns/div~50s/div
Storage: Setup, Wave, Bitmap, CSV
Trigger Modes: Edge, Plus, Video, Slope, Alternate, LA
Interface: USB Device, USB Host, Pass/Fail, LA Interface, Multimeter
Interface

Model: UTD4202C
Channels: 2
Bandwidth: 200MHz
Sample Rate: 2GS/s
Rise Time: ≤1.8ns
Memory Depth: 24kpts
Waveform Acquisition Rate: ≥2,000wfms/s
Vertical Sensitivity: 1mV/div~10V/div
Timebase Range: 5ns/div~50s/div
Storage: Setup, Wave, Bitmap, CSV
Trigger Modes: Edge, Plus, Video, Slope, Alternate, LA
Interface: USB Device, USB Host, Pass/Fail, LA Interface, Multimeter
Interface

Characteristic :

Power: 100-240VAC, 45-440Hz
Display: 5.7 Inches 64K Color TFT LCD, 320×240
Product Color: White and Gray

Minimum Order: 1 pieces
