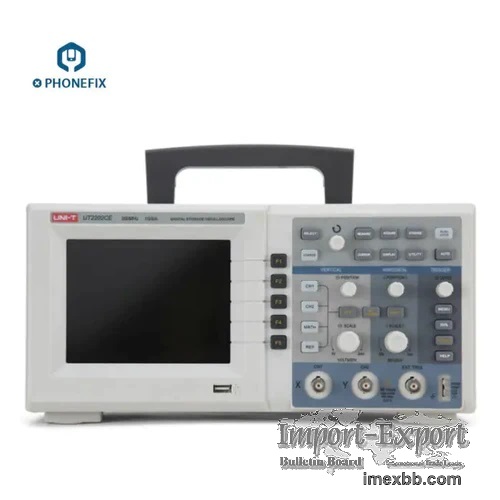

UNI-T UTD2202CE 2 Channels Digital Storage Oscilloscope

UTD2000E Series 2 channels Digital Storage Oscilloscopes: UTD2102CE /
UTD2152CE / UTD2202CE

Optional Model :
Option 1: UTD2102CE: 300
Option 2: UTD2152CE: 290
Option 3: UTD2202CE: 360

Product Features :
Supports plug-and-play USB storage device. Communication with and remote
control of computer through the USB device;
Storage of waveform setups and interfaces waveform and setups reproduction;
Automatic measurement of 28 waveform parameters;
Unique waveform recording and replay function;
Edge, Plus, Video, Alternate trigger functions;
Unique Pass/Fail functions;
Multilingual menu displays.

Product Specification :
Model: UTD2202CE
Channels: 2
Bandwidth: 200MHz
Sample Rate: 1GS/s
Rise Time: ≤1.8ns
Memory Depth: 25kpts
Waveform Acquisition Rate: ≥2000wfms/s
Vertical Sensitivity: 2mV/div~5V/div
Timebase Range: 2ns/div~50s/div
Storage: Setup, Wave, Bitmap
Trigger Modes: Edge, Plus, Video, Alternate
Interface: USB Device, USB Host, Pass/Fail

Model: UTD2102CE
Channels: 2
Bandwidth: 100MHz
Sample Rate: 1GS/s
Rise Time: ≤3.5ns
Memory Depth: 25kpts
Waveform Acquisition Rate: ≥2000wfms/s
Vertical Sensitivity: 2mV/div~5V/div
Timebase Range: 5ns/div~50s/div
Storage: Setup, Wave, Bitmap
Trigger Modes: Edge, Plus, Video, Alternate
Interface: USB Device, USB Host, Pass/Fail

Model: UTD2152CE
Channels: 2
Bandwidth: 150MHz
Sample Rate: 1GS/s
Rise Time: ≤2.3ns
Memory Depth: 25kpts
Waveform Acquisition Rate: ≥2000wfms/s
Vertical Sensitivity: 2mV/div~5V/div
Timebase Range: 2ns/div~50s/div
Storage: Setup, Wave, Bitmap
Trigger Modes: Edge, Plus, Video, Alternate
Interface: USB Device, USB Host, Pass/Fail

Minimum Order: 1 pieces
