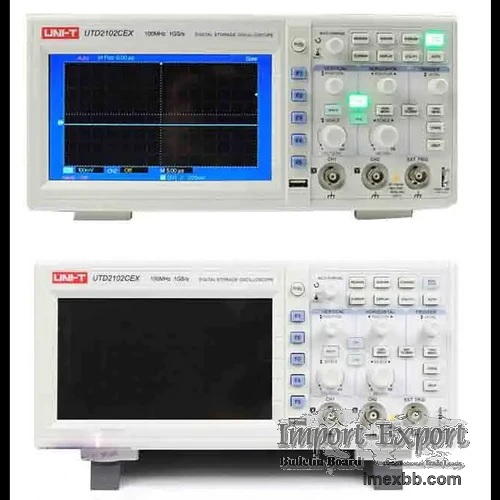

UNI-T UTD2102CEX Digital 2-Channel Storage Oscilloscope

UNI-T UTD2102CEX Digital Storage Oscilloscopes: 100MHz Dual Channels 1Gs/s

Product Features :
Dual analog channels width range 1mV/div~20V/div;
7 inches widescreen LCD displays;
The new interface style;
Supports plug-and-play USB storage device. Communication with and remote
control of computer through the USB device;
USB drive system software upgrade;
Storage of waveforms setups and interfaces waveforms and setups
reproduction;
Automatic measurement of 32 waveform parameters;
Unique waveform recording and replay function;
Multilingual menu displays.

Product Specification :
Specification: UTD2102CEX
Channels: 2
Bandwidth: 100MHz
Sample Rate: 1Gs/s
Rise Time: ≤3.5ns
Memory Depth: 2 5kpts
Waveform Acquisition Rate: ≥2000wfms/s
Vertical Sensitivity(V/div): 1mV/div~20V/div
Time base Range(s/div): 2ns/div~50s/div
Storage: Setup,Wave,Bitmap
Trigger Modes: Edge, Pluse, Video,Slope,Alternate
Interface: USB OTG

Package List :
1 * UTD2102CEX Digital Storage Oscilloscope
2 * Test Probes(1×,10× switchable)
1 * US Power Cable
1 * USB Cable
1 * PC Software CD
1 * English Manual

Minimum Order: 1 pieces
