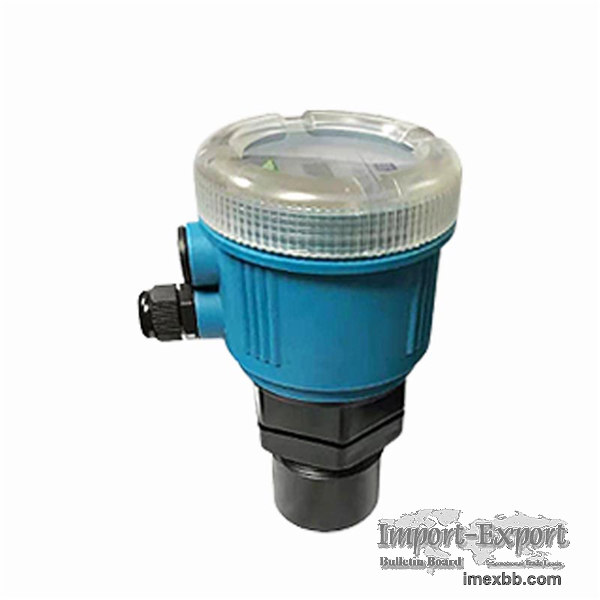

Ultrasonic Level Transmitter

Ultrasonic liquid level meter has perfect functions of liquid level monitoring,
data transmission and man-machine communication. Strong anti-jamming
performance; The upper and lower limits can be set freely, online output
adjustment and on-site indication. A variety of styles are available.
Advantage
Ultrasonic Level Transmitter is a non-contact, highly reliable, cost-effective,
easy to install and maintain the level measurement instrument. High-quality
transparent protective shell, sealing ring and protection of the electrical
interface; observe the data intuitively and clearly, excellent waterproof and
dustproof design, effective protection of the internal line. Overall selection
of engineering plastics, impact resistance, aging resistance, high temperature
and low temperature resistance, long service life; internal coil shock
protection, stable and strong sealing. Optional relay output to control the
pump start and stop.
Specifications
Parameter Description
Structure Split type/ compact type
Measuring range 0.4~20m
Output 2 wire/4-20MA, RS485, HART
Voltage 12V/24V/220V
Display Local LCD Display
Pressure -0.2~1bar
Protection Grade IP68
Accuracy ±0.5%FS
Blind Zone 0.25-0.5m
Ambient Temperature -15~+50℃
Connection M66*3 thread
Open a hole with 68mm
