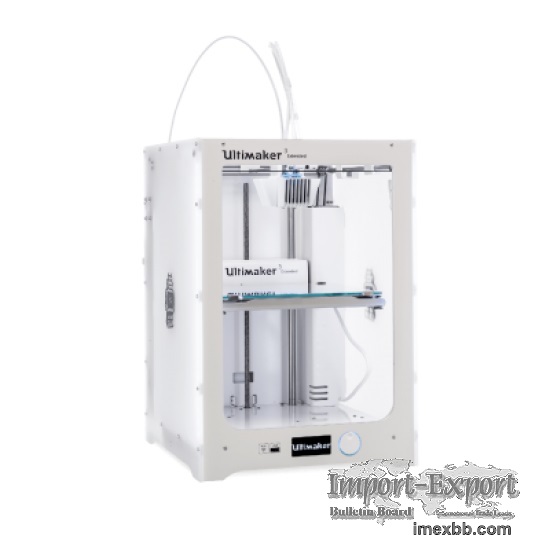

Ultimaker 3 Extended 3D Printer - WORLDPRINTHEAD

Product Description
Printer and printing properties
Assembly type Pre-assembled
Layer resolution 0.40 mm nozzle: 200 to 20 microns
Build plate 20 ˚C to 100 ˚C heated glass build plate
Build plate leveling Active leveling

Print technology Fused Deposition Modeling (FDM)
Print head Dual extrusion print head
Print core replacement Swappable print cores
Build speed 0.40 nozzle: up to 16 mm³/s
Print head travel speed 30 to 300 mm/s
Feeder type Dual geared feeder
XYZ accuracy 12.5, 12.5, 2.5 micron
Nozzle diameter 0.4 mm
Nozzle temperature 180 ˚C to 280 ˚C
Nozzle heat up time < 2 minutes
Build plate heat up time < 4 minutes
Operating sound 50 dBA
Materials
System Open filament system
Filament diameter 2.85 mm
Supported materials Nylon, PLA, ABS, CPE and PVA
Ultimaker filament A spool of Ultimaker filament is 750 g
Requirements
Software Cura, our free print preparation software
Supported OS Free on macOS, Windows and Linux
Supported file types STL, OBJ and 3MF
File transfer WiFi, LAN or USB
Operating ambient temperature 15 °C to 32 °C (59 °F to 89 °F)
Nonoperating temperature 0 °C to 32 °C (32 °F to 89 °F)
Input 100 - 240 V
4A, 50-60 Hz
221 W max.
Output 24 V DC, 9.2 A


Dimensions with bowden tube and spool holder:
342 x 505 x 688 mm
(13.5 x 19.9 x 27 inches)

Weight:
11.3 kg (399 ounces)

Left or right nozzle:
215 x 215 x 300 mm
(8.5 x 8.5 x 11.8 inches)

Dual extrusion:
197 x 215 x 300 mm
(7.8 x 8.5 x 11.8 inches)



Free extras
A USB stick, glue stick, grease, hex wrenches and USB and Ethernet cables
Two swappable 0.4 AA print cores
A swappable 0.4 BB print core
A 350 g spool of Ultimaker PLA
A 350 g spool of Ultimaker PVA
A spool holder with an NFC cable
A calibration card and XY calibration sheet
Cura, our award-winning print preparation software
Powerful Ultimaker app
Comprehensive 12-month warranty
Lifetime expert support

Minimum Order: 1 pieces
