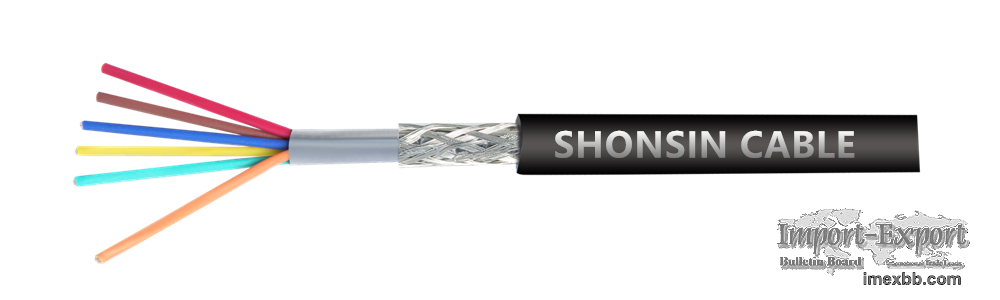

UL20276 PVC UL CABLE

UL 20276 Cable is multi conductor that comes with extruded non-integral jacket.

Features of UL20276 PVC UL Cable:
Rated Temperature: 60℃ or 80℃
Rated Voltage: 30 Vac
Fire Resistance: UL VW-1 & CSA - FT1
Insulated Conductor: Labeled or complying with AWM Procedure. 40 AWG minimum.
Assembly: Consists of two or more conductors, twisted pairs, parallel pairs, or
groups of twisted conductors or parallel pairs twisted together. The conductors
or groups of conductors may be laid parallel forming a flat, oval, or round
cable. The lay of the insulated conductors is not specified. A barrier layer
and/or fillers are optional. The manufacturer shall maintain a complete
description of each assembly. May use the same or mixed AWG size.
Covering: Optional, Extruded PVC, 6 mils minimum thickness at any point, over
the conductor assembly.
Shielding: Optional
Braiding: Optional
Jacket: Extruded PVC
Standard: Appliance Wiring Material UL 758.
RoHS & REACH compliance
Resistant to acids, oils, alkalis, moisture & fungi.
Use: Internal wiring or external interconnection of electronic equipment in
Class 2 circuits only.

Shonsin Electronics Co., Ltd is a professional custom wire and cable
manufacturers, we provide custom wire, such as silicone wire, tinsel wire,
speaker wire, hook up wire, automotive wire and etc. Want to know more? Please
contact us.

Minimum Order: 100 pieces
