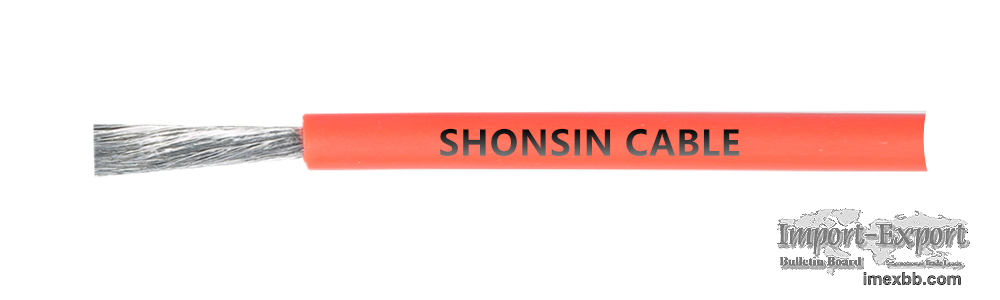

UL1571 PVC UL Wire

UL 1571 hook up wire is a single conductor that comes with extruded PVC
insulation which is a thermoplastic material.

Features of UL1571 Wire:
Rated Temperature: 80℃
Rated Voltage: 30 Vac
Fire Resistance: UL VW-1 & CSA - FT1
Conductor: 50 AWG minimum. Solid or Stranded.
Insulation: Extruded PVC, SRPVC, foamed PVC, foamed SRPVC, XLPVC, XLSRPVC,
foamed XLPVC or foamed XLSRPVC, 2 mils minimum thickness at any point, 100 mils
maximum thickness.
Standard: Appliance Wiring Material UL 758.
RoHS & REACH compliance
Resistant to acids, oils, alkalis, moisture & fungi.
Use: Internal Wiring of Class 2 Circuits in electronic equipment.

Specifications of UL1571 PVC UL Wire:
Cable Type Conductor Insulator
Size Construction Cross Section Diameter Thickness
Overall Diameter
AWG No. Copper(Φmm) (mm²) (mm) (mm) (mm)
UL1571
Hook Up
Wire 32 7 0.08 0.04 0.24 0.23 0.7
30 7 0.10 0.05 0.31 0.25 0.8
28 7 0.127 0.09 0.39 0.26 0.9
26 7 0.16 0.14 0.49 0.26 1
24 11 0.16 0.22 0.61 0.24 1.1
22 17 0.16 0.34 0.76 0.27 1.3
20 26 0.16 0.52 0.94 0.28 1.5
18 42 0.16 0.84 1.20 0.30 1.8
16 66 0.16 1.33 1.50 0.30 2.1

Shonsin Electronics Co., Ltd is a professional custom cable manufacturers, we
provide custom wire, such as silicone wire, tinsel wire, speaker wire, hook up
wire, power wire and etc. Want to know more? Please contact us.

Minimum Order: 100 pieces
