UIY Drop in Isolator 1400 ~ 1600 MHz 200W/30W


Product Name:RF Drop in Isolator

Model Number:UIYDI2525A1400T1600

Frequency Range (MHz):1400 ~ 1600

Insertion Loss Max (dB):0.3

Isolation Min (dB):23

VSWR Max:1.2

Forward Power (W):200

Reverse Power (W):30

Connector Type:TAB

Temperature (°C):-40 ~ +85

Dimension L*W*H(mm):25.4×25.4×10.5

Warranty:1 Year

Minimum Order: 1 pieces

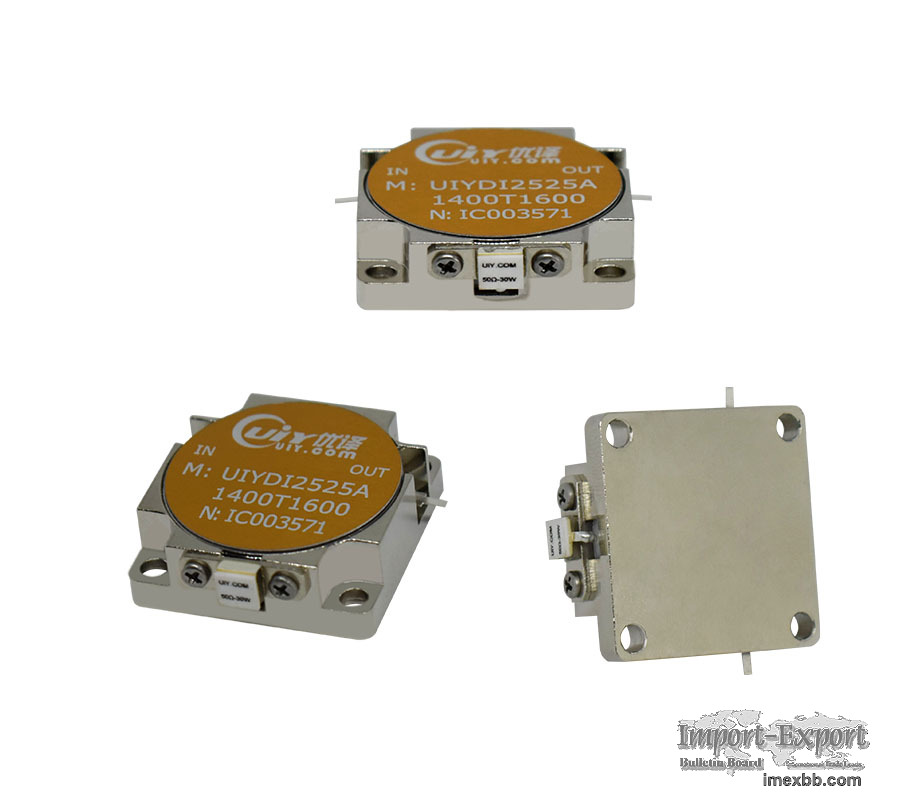

UIY Drop in Isolator 1400 ~ 1600 MHz 200W/30W
Enlarge Click to Enlarge
