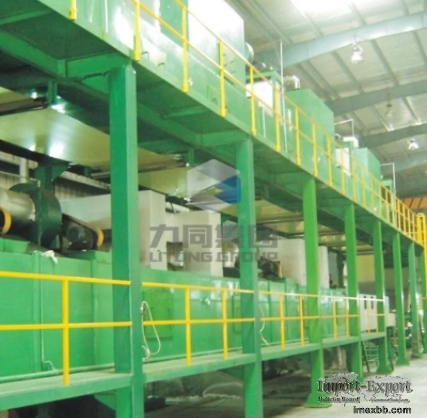

TZ1600-35 2-Sides 2-Coatings Aluminium Production Line (Separated)
TZ1600-35 2-Sides 2-Coatings Aluminium Production Line (Separated) Coating line features: Model TZ1600-35 coating line (separated structure) is suitable for certain coating factories. 2-sides 2-coating coating products in thickness range 0.15mm~0.6mm applies to most ACP material, roofing and ceiling material. Model TZ1600-35 coating line is high quality coating line, good performance in all kinds of paint coating. Separated structure is flexible in production, pretreatment process and coating process are separated and non-interfering, so that production is much easier to plan or schedule. Operation faults and equipment problems effect is less. A primary reason to choose separated structure is its advantage over dimension, Model TZ1600-35 requires only 85m×18m×7m workshop. Application: For coating aluminium coil of ACP(Aluminium Composite Panel), roofing , cladding, ceiling,roller shutter,etc. Advantage: Widely usage range, short line, smaller dimension workshop needed, less operation faults and equipment problems effect . 1. Main parameters of coating line Material parameter Thickness: 0.15~0.6mm Width: 1600mm Outer diameter OD(max): Φ1500mm Inner diameter: Φ405mm Bobbin material: Steel or paper Inverval-layers deviation tolerance: ≤0.8 mm (Excluding the bottom 5 layers and exterior 2 layers) Coil over-all deviation tolerance: ≤2 mm (Excluding the bottom 5 layers and exterior 2 layers) Coating thickness: Dry film thickness: 8~20 um Product Weight: Max 5000kg(Excluding bobbin) CCL Processing Speed: 35 m/min (Speed benchmark: thickness 0.25mm coil exclude PVDF coating) Heating Energy Source: LNG, LPG Roller coating Process: Continuous 2 sides 2 coating & 2 baking Properties and features: Roller width: 1800mm Coils feeding centering adjustment : ±75mm Threading speed: 5~15m/min(Adjustable) Line maximum speed: 35m/min Line speed accuracy: Steady Speed, ±0.1%; Acceleration, ±0.4% Uncoiling tension range: 160~800kgf Processing tension range: 160~800kgf Coiling tension range: 320~1400kgf Tension accuracy: Steady Speed, ±1.0%; Acceleration, ±2.0% Line space dimensions: 76000mm×1000mm×6500mm Heating Energy Source: LNG, LPG 2. Basic Production Process Coating line Coil loading → Uncoil machine → Sewing table → Topside primer-paint roller-coater → Curing oven 1 → Air cooling → CPC 1 → Tension device 1 →Topside 2-coat and backside roller-coater → Curing oven 2 → CPC 2 → Tension device 2 → Coil machiner → Coil discharging Pretreatment line Coil loading → Uncoil machine → Sewing table → Acid washing, brushing roller → Water washing → Deionized water washing → Drying → Roller- coating chromizing → Drying → Cooling → Tension device → Coil machine → Coil discharging Rewinding line Coil loading → Uncoil machine → Sewing table → Tension device → Coil machine → Coil discharging 3. Main devices list Name Quantity Uncoil machine 3 Sewing table 3 Tension Device 4 Redirection steel roller 11 Brushing roller 2 Degrease pool 3 Water washing pool 2 Drying device 2 Squeeze roller 5 Roller-coating chromizing coater 1 Coater 2 Curing oven 2 Heat system 2 Air cooling system 4 Film device 1 Coil machine 3 CPC 2 EPC 3 Steel frame 1 Electrical system 3 *Optional configuration: waste gas treatment and energy recycle system 4. Water and power consumption of coating line Total power consumption: 600KW Compressed air: Min5.5bar,1Nm3/min,actual consumption Water: Deionized water, supply quantity is about 4T/h Heating fuel: LPG or LNG LPG consumption: 0.6 CBM/min LNG consumption: 1 CBM/min 5.The coating line design and manufacture leads 100 days, installation and testing leads 60 days. 6.Trade terms: FOB, CIF are available 7.Payment terms: T/T, D/P, LC are acceptable 8. Packing style: Wooden pallet 9. Transportation: by sea
