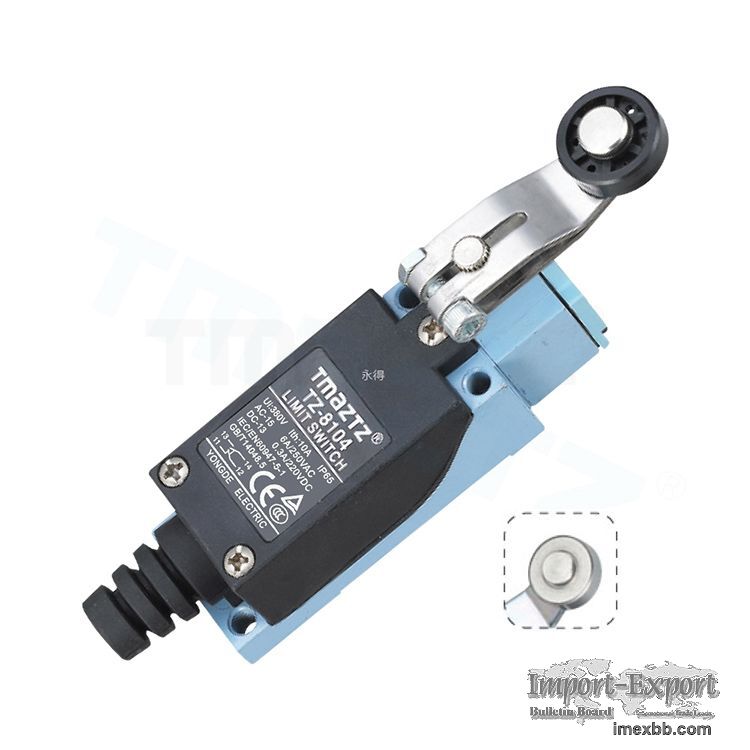

TZ-8104 roller lever actuator Limit Switch
■ Double-circuit type of limit switch. ■ Compact new design approximately 1/3 the size of TMAZTZ vertical limit switches. ■ With strong zinc cast base, and reinforced plastics outer shell, High. Structure preventing oil, water and pressure. ■ Structure enables the terminal section to be fully opened for easy wiring. ■ Degree of protection: IP65 ■ Aslo includes stainless steel roller model
TZ-8 Limit Switches TZ-8 limit switch in the specific production and manufacture, the limit switch is installed in a pre-arranged part, when the control module installed on the production of molecular thermal motion components collides with the limit switch, the contact point posture of the limit switch completes the conversion of the power supply circuit. Therefore, the limit switch is a kind of household appliance that converts the power supply circuit according to the stroke arrangement part of the fitness exercise component, and its basic principle of efficacy is similar to that of the button.
Ratings Rated voltage Noninductive Load (A) Inductive Load (A) Resistance Load Lamp Load Inductive Load (A) Motor Load NC NO NC NO NC NO NC NO 125VAC 5 5 1.5 0.7 3 3 2 1 250VAC 5 5 1 0.5 3 3 1.5 0.8 8VDC 5 5 3 3 5 4 3 3 14VDC 5 5 3 3 4 4 3 3 30VDC 5 5 3 3 4 4 3 3 125VDC 0.4 0.4 250VDC 0.2 0.2 Inrush Current N.C: below 24A, N.O: below 12A
NOTE: 1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC). 2. Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current. 3. Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring.
Characteristics Operation speed 0.5mm-50cm/sec Operating frequency Electical: 30 operations/minute Contact resistance 25mΩ max. (initial value) Insulation resistance 100mΩ min. (below 500VDC) Shock Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S) Ambient temperature -5~+65℃ (With no icing) Humidity <95% RH Weight About 130 to 190g Degree of protection IP65 Electrical Life Above 500000
Operating Characteristics Operating Characteristics Model TZ-8104 TZ-8107 TZ-8108 TZ-8111 TZ-8112 TZ-8122 TZ-8166 TZ-8167 TZ-8168 TZ-8169 Operating force OF (Max) 5.88N 5.88N 7.84N 9.8N 9.8N 9.8N 0.88N 0.88N 0.88N 0.88N Release force RF (Min) 0.49N 0.69N 0.49N 2.94N 2.94N 2.94N 一 一 一 一 Pre-travel PT (Max) 20° 20° 20° 1.5mm 1.5mm 1.5mm 30mm 30mm 30mm 30mm Over-travel OT (Min) 75° 75° 75° 4mm 4mm 4mm 一 一 一 一 Movement differential MD (Max) 10° 10° 10° 1.2mm 1.2mm 1.2mm 一 一 一 一 Total travel TT (Min) 95° 95° 95° 5.5mm 5.5mm 5.5mm 一 一 一 一 Operational position OP 一 一 一 26±0.8mm 一 一 一 一
