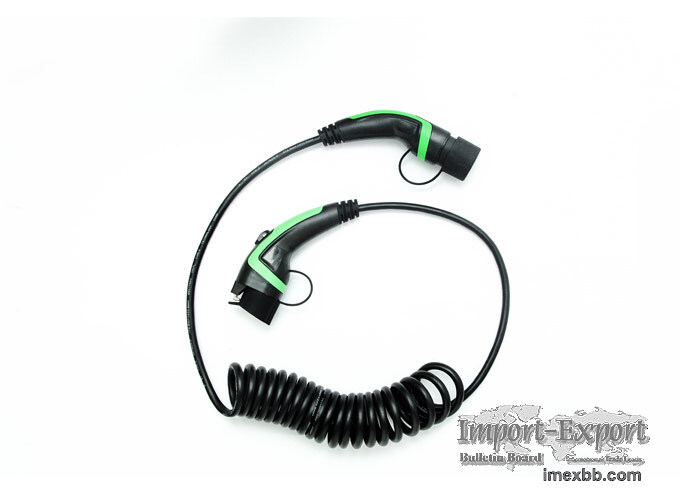

Type2-Type2 EV Charging Cable

JAYUAN is not only a solar products supplier, but also an electric car charger
manufacturer that JAYUAN can use the solar system to charge electric cars as
well as to run home appliances.

The cable conforms to the IEC Standard (EU) of EV Charging, which suits
Electric Vehicles manufactured in European Countries. One end with sheath
connects to the EV while The other end connects to the Charging Station. The
other option is type 2 to type 1 cable/ev type 2 to type 1 converter, it saves
more space when stocking, nice solution for charging.

Features of Jayuan Type 2 to Type 2 Charging Cable
Matching IEC 62196-2 2010 and SAE J1772 2010.
Ergonomic Design.
Convenient Connector.
Advanced Craft shows a Nice Appearance.
Longer Lifespan and Better Bending thanks to XLPO & TPU Material.
IP55 for Plug.

Specifications of Type 2 to Type 2 Cable
Electrical Environment Materials Mechanical
Insulation Resistance: >1000MΩ (DC500V) Operating Temperature:
-30℃~50℃ Shell (Thermoplastic): UL94-V
Flame Retardent Life: no-load plug>10000times
Pins Temperature Rise: <50K Waterproof IP Grade: IP66/IP55 Pin:
Copper Alloy, Silver Plated External Force: 1meters Drop and 2tons vehicle
run over pressure affordable.
Withstand Voltage: 2500V / / / / Insertion
Force: <100N
Contact Impedance: 0.5mΩMax / / / / /
/
