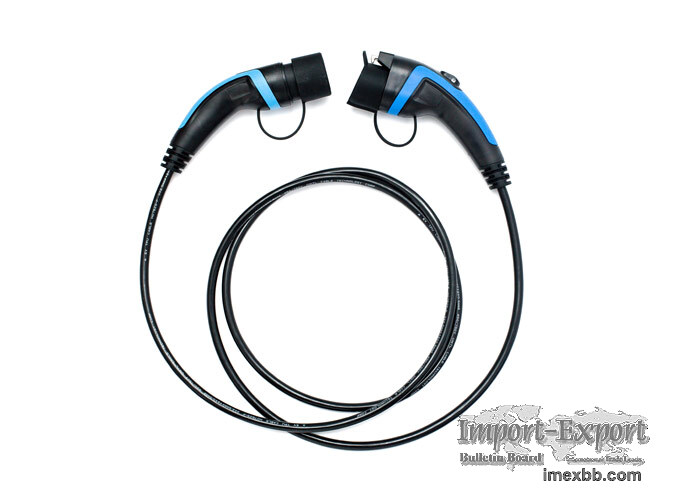

Type2-Type1 EV Charging Cable

JAYUAN is not only a solar products supplier, but also an electric car charger
manufacturer that JAYUAN can use the solar system to charge electric cars as
well as to run home appliances.

The cable conforms to IEC & SAE Standard (EU & USA) of EV Charging, suits
Electric Vehicles manufactured in European Countries and America. The Type 1
end (with sheath) connect to the EV while The Type 2 end connects to the
Charging Station. The other option is Cable Spiral Type, it saves more space
when stocking, nice solution for charging.

Features of Jayuan Type 2 to Type 1 Charging Cable
Matching IEC 62196-2 2010 and SAE J1772 2010.
Ergonomic Design.
Convenient Connector.
Advanced Craft shows a Nice Appearance.
Longer Lifespan and Better Bending thanks to XLPO & TPU Material.
IP65 for Plug.

Specifications of Type2-Type1 EV Charging Cable
Electrical Environment Materials Mechanical
Insulation Resistance: >1000MΩ (DC500V) Operating Temperature:
-30℃~50℃ Shell (Thermoplastic): UL94-VO
Flame Retardent Life: no-load plug>10000times
Pins Temperature Rise: <50K Waterproof IP Grade: IP66/IP55 Pin:
Copper Alloy, Silver Plated External Force: 1meters Drop and 2tons vehicle
run over pressure affordable.
Withstand Voltage: 2500V / / / / Insertion
Force: <100N
Contact Impedance: 0.5mΩMax / / / / /
/
