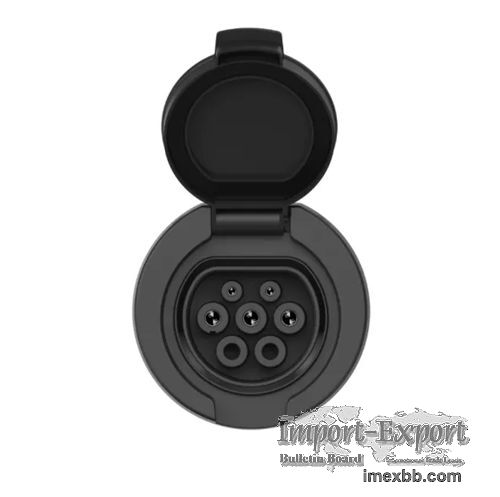

Type 2 EV Charging Socket Without Shutter

High Quality EV Charging Socket EL-SOC1-XX
03：3.7KW，rated current Max 20A
07：7.4KW，rated current Max 32A
11：11KW，rated current Max 20A
22：22KW，rated current Max 32A
The cable specifications 20A：2.5mm²
The cable specifications 32A：6.0mm
Wiring Cable and E-lock can be added
The EraCharge EV Charging Socket Outlet is TUV and CE certified, featuring a
sleek and elegant design. We have a comprehensive technical team to provide
support, including 2D drawings, 3D drawings, installation guidance, and
customized socket appearance.
Based on customer requirements, we can also customize specific sockets to fit
their charging stations. If you have any needs for charging sockets, please
feel free to contact us. We look forward to collaborating with leading
manufacturers.

Model
Rated value
Rated current
With E-Lock
With Shutter

EL380-11-SOC1-E
AC 480V~,
3ph
Max 20A


Y





N

EL3 , 80-22-SOC1-E
Max 32A

EL220-03-SOC1-E
AC 250V~,
1ph
Max 20A

EL220-07-SOC1-E
Max 32A

EL380-11-SOC1-N
AC 480V~,
3ph
Max 20A


N

EL380-22-SOC1-N
Max 32A

EL220-03-SOC1-N
AC 250V~,
1ph
Max 20A

EL220-07-SOC1-N
Max 32A
