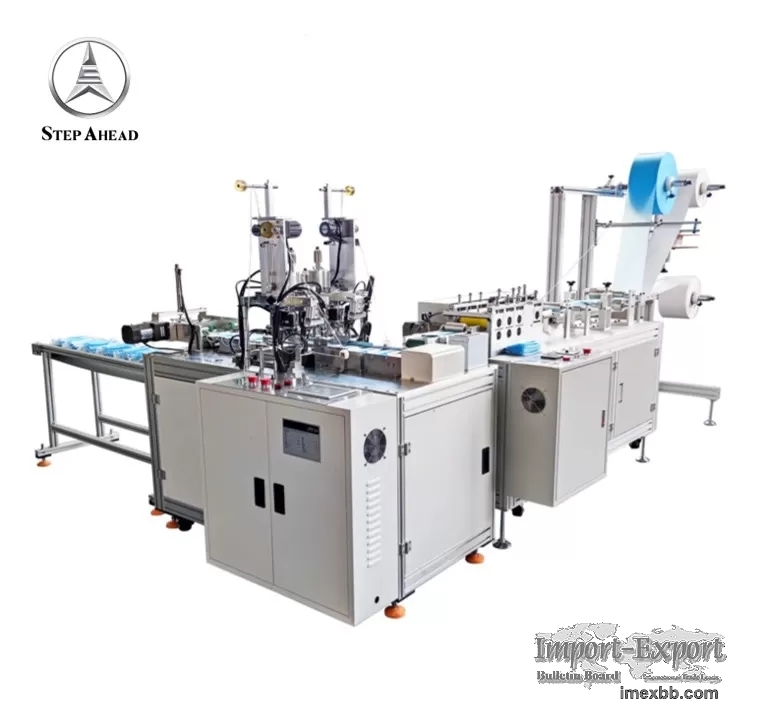

Two Ear Loop 100pcs/Min Non Woven Mask Making Machine

Two Ear Loop 100pcs/Min Non Woven Mask Making Machine



Product description

Introduction of full automatic face mask machine nonwoven mask machine
surgical face mask making machine

This production line is a fully automatic 1+2 mask machine, one mask main
body machine drives two ear loop welding machine.

1. The production process includes feeding of filter material, folding and
pressing, feeding of nose bridge clips, shaping and cutting of the masks and
welding of the ear bands.

2. Our production line is especially suitable for the production of three
layers of disposable masks and provides a high output of up to 100,000
pieces/day. One-man operation is possible due to an integrated intelligent
operating system.

This machine adopts PLC, touch screen control, main conveyor belt adopts
servo motor transmission, accurate transmission, stable control, adjustable
speed



How is the machine automatic making 3 or 4 ply disposable flat masks?
The whole roll of fabric is driven by rollers after unwinding, and the
fabric is automatically folded and hemmed; Nose strip will be cut to length
and guide into the hemmed fabric. Two sides Ultrasonic welding and sealing
edge of the mask, and cutting and shaping by a cutter; Conveying the mask to
the ear loop welding stations through an assembly line, and finally forming
the mask by ultrasonic welding earloop; Mask is transported to the conveyor
belt for collection when the processing of mask making ended.



Specification



Product name

Face mask making machine

Power supply

220VAC±5 50HZ

Production speed

100-150pcs/min

Mask Size

17.5*9.5cm

Environmental requirements

10-35 ℃, general dust-free workshop Humidity 0-95% non-condensing

Air source

0.5～0.7 MPa, 300L/min

Dimension

6500mm(L)×4500mm , (W)×1900mm(H)

Weight

<2500kg
,
Certification

CE

Pass rate

>98%

Warranty

1 year

Composition of the production line

Roller Fabric frame, main body system machine, two ear loop welding machines

Mask materials

Non woven fabric, melt-blown, nose wire, earloop wire

Lead time

7-15days

Logo

Custom logo Available
