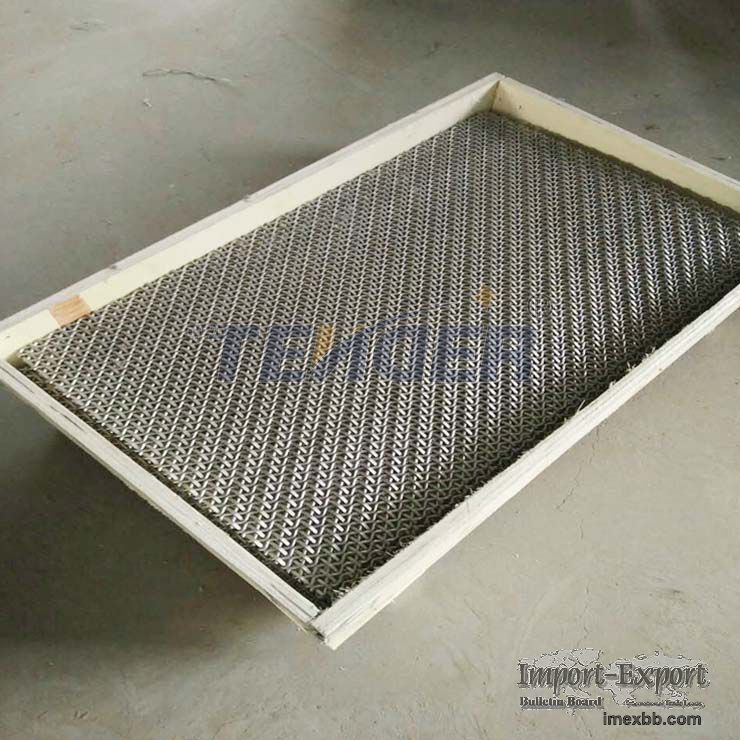

Twill Weave Wire Mesh

The wires of the weft and the warp inter-cross two above and two below,
inverting the intersections of the warp wire at an established distance,
obtaining a rigid, stable and robust type of wire mesh fabric. The pattern is
staggered on successive warp wires, giving the appearance of parallel diagonal
lines.

Company advantage: large inventory, can be delivered at any time, support
special specifications special customization
Specification parameter

1. Raw material: stainless steel wire 304, 304L, 316, 316L, Alloy.

2. Wire diameter: 0. 015-1. 8mm

3. weaving count: 200mesh -3200mesh

4. Weaving width: 0. 912m、1m、1. 5m、2m、3m、5m、max 8m

5. Weaving length: :usually, manufactured in 30m、50m、80m、100m etc

6. Stainless Steel Wire Mesh Tengde Product Features:

Corrosion resistance, anti-acid and wear resistance, anti-high temperature,
good filter performance, long using life

Heat, acid, corrosion resistance, wear resistance

7. Min order: 1roll, max order: no limit

8. Stainless steel wire mesh products Net surface: clean, smooth, small
magnetic

9. Packaging Details

A: paper tube inside, then water-proof film and plastic film outside
B: wooden box or pallet final.

C: Per roll packs with craft paper + wooden box

D: Special package on request.

10. Application:

Crossed twilled wire mesh are basic components in the production of filters,
colanders for aliments, chemicals products, shielding, mosquito nets, etc.

This weave allows the use of proportionately heavier wires in a particular mesh
count(number of openings per lineal inch) than is possible in plain weave.

This cloth has a wide application capable of supporting greater loads and finer
filtering.

Minimum Order: 1 tons
