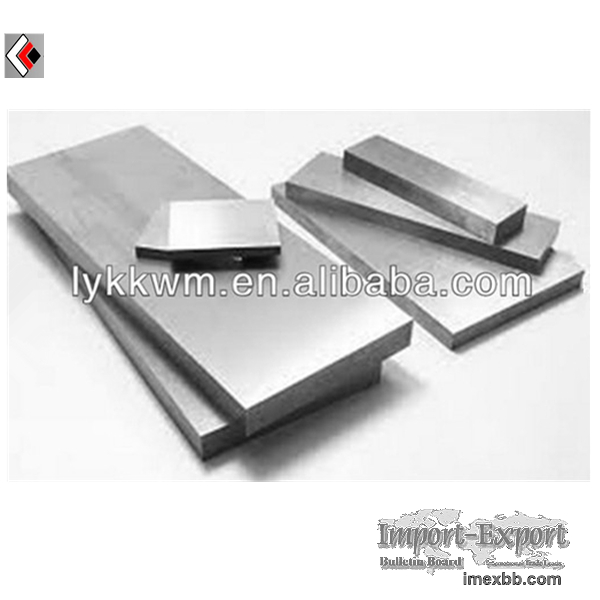

Tungsten plate

Tungsten plate
Owning two hot rolling machine and five cold rolling machines, we can supply
tungsten and molybdenum sheet thickness of 0.05mm to 20mm.With very good
performance, these products are used to produce electrode, heater ,heat-shield
,sputter target, crucible in electronic, vacuum furnace application.
1. Grade: W1, W2, WAL, WLa, WNiFe

2. Purity :> =99.95%

3. Characteristic:

Melting Point: 3410 Degrees Celsius

Boiling Point: 5927 Degrees Celsius

Density: 19.3g/cm3

High quality, workability

4. Certificate: ISO9001:2008

5. Product Feature: High melting point, High-density, high temperature
oxidation resistance, long service life, resistance to corrosion..

6. Dimensions and tolerance (According to clients’ requirements):
Tungsten Thickness Width Length
Plate 0.5 ~ 10mm 50 ~ 800mm 50 ~ 2000mm
Sheet 0.1 ~ 0.5mm 30 ~ 400mm 30 ~ 1000mm

Other element content≤ Fe 0.001 Al 0.0001 Bi 0.0001 Si
0.001
Ca 0.001 Ni 0.00035 Mo 0.0008 O 0.0047
P 0.001 N 0.002 Mg 0.0001 Pb 0.0001
Sn 0.0001 Sb 0.0001 C 0.00085 As 0.0001

7. Application:

7.1. used as the stell-making additive
7.2. for producing tungsten targets
7.3. for producing ion implantation parts
7.4. for rolling tungsten foil and punching tungsten discs
7.5. for producing electric light source parts and electric vacuum components
7.6. for producing heating elements and refractors in high temperature furnaces
7.7. for producing W-boats, and heating units in high temperature furnaces
8. Technical process:

Tungsten Powder → Isostatic Pressing → Bar Billet →Sinering → Semi-finished
bar →Forging→ Swaging → Polished → End products → Inspection → Packing

Minimum Order: 1 kilograms
