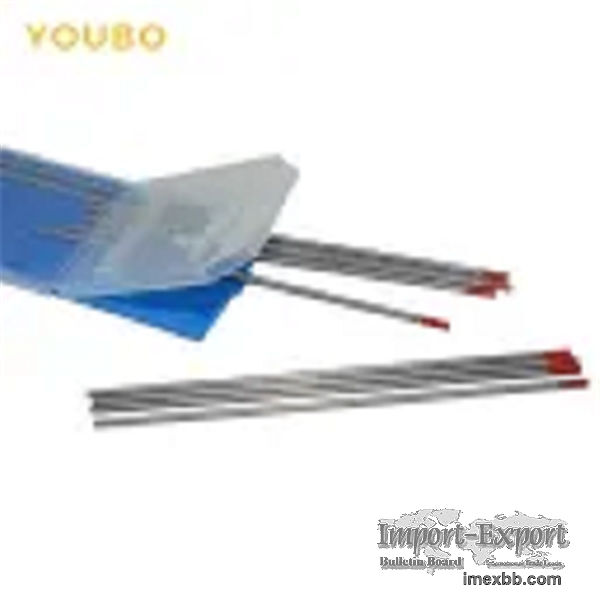

Tungsten Electrode

Tungsten electrode is a tungsten electrode made of materials with high melting
point, corrosion resistance, high density and good thermal and electrical
conductivity. Tungsten electrodes are widely used for welding in their
properties. Tungsten electrode grinding or polishing and black rod. The final
colors are different, which can distinguish the differences. In tungsten
electrodes, more importantly, their final color is different, and their
tungsten content is also different. When welding, select the correct tungsten
electrode to make welding easier. It is important to obtain high-quality
welding. Some important factors to consider in making the right choice are the
type of power supply (inverter or transformer), welding material (steel,
aluminum or stainless steel) and material thickness.

Parameter:
Type AC/DC Recommended Usage
2% Thoriated (Red) DC Copper alloys, nickel alloys, titanium alloys,
and stainless steels
2% Lanthanated (Blue) AC& DC Aluminum alloys, magnesium alloys, nickel
alloys, copper alloys, titanium alloys, low-alloyed
steels, and stainless steels
Pure Tungsten (Green) AC Magnesium alloys and aluminum alloys
2% Ceriated (Grey) AC& DC Titanium alloys, copper alloys, magnesium
alloys, aluminum alloys, nickel alloys, low-alloyed
steels, and stainless steels
1.5% Lanthanated (Gold) AC& DC Titanium alloys, copper alloys, nickel alloys,
and stainless steels
Rare Earth Blend(Purple) AC& DC Aluminum alloys, magnesium alloys,
titanium alloys, nickel alloys, copper alloys, low-alloyed
steels, and stainless steel
0.8% Zirconiated (White) AC Handles higher amp levels for magnesium

Applications:
Pure tungsten electrode is most widely used in AC welding; When pure tungsten
electrode is heated, the welding ball becomes sharp to provide a balanced
waveform AC welding, and the arc is stable; Pure tungsten electrode also
provides good arc stability for sine wave AC welding of aluminum and
magnesium.Click For More.

Tungsten Electrode Types:
Electrode Type Composition Features Suitable for
Pure Tungsten Electrode 99.5% pure tungsten Excellent electrical
conductivity AC welding of aluminum and magnesium alloys
Thoriated Tungsten Electrode Tungsten + 1-2% thorium oxide Improved
electron emission and arc stability AC and DC welding of mild steel,
stainless steel, non-ferrous metals
Tungsten Electrode with Cerium (2% Ceriated) Tungsten + cerium oxide
Improved arc starting, reduced tip contamination AC and DC welding of
stainless steel, nickel alloys, carbon steel
Lanthanated Tungsten Electrode Tungsten + lanthanum oxide Better arc
stability, longer electrode life AC and DC welding of stainless steel,
carbon steel, aluminum
Zirconiated Tungsten Electrode Tungsten + zirconium oxide Good resistance
to contamination, suitable for AC welding AC welding of aluminum and
magnesium alloys
