TTF F220 FPV Racing Quadcopter

5-in-1 highly integrated flight control system
1000m long-distance control
3K full carbon fiber airframe
700TVL camera and 5.8G 32CH 600mW
11.1V 1500mAh 25C 3S LiPo

Main Features of Quadcopter Racing Drone
- 3K full carbon fiber airframe, lightweight, robust and impact-resistant
- 700TVL camera and 5.8G 32CH 600mW presents 1020 x 596px image to you in the
real time
- 5-in-1 highly integrated flight control system, including buzzer and LED
taillight
- 1000m long-distance control with FLYSKY FS - i6 transmitter and 6CH receiver
- 11.1V 1500mAh 25C 3S LiPo offers you about 10 minutes' furious flight

Motor: TTF2205-2300KV
F220 FPV racing quadcopter for sale, as the professional race drone, comes with
racing brushless motor 2205, a practical motor in FPV drone racing field, and
2600KV, a new racing KV.

BLHELI-S 20A ESC
High TG PCB board, blind vies, copper thickness reaches 30Z, with an excellent
discharge capacity using 21 Japanese TDK capacitors, Toshiba’s top MOS tube.
Flight support 4S maximum voltage, single ESC can reach 40A maximum electric
current. The processor adopts EFM8BB2 and independent motor driver chip.
Comprehensive performance is very excellent, ESC performance ranks top level in
the market. PCB board supplier is the same with DJI’s, with very excellent
process performance.

Quadcopter Racing Drone
The best budget FPV quadcopter Equipped with mainstream Omnibus F3 flight
controller, which enables players to perform autonomous tuning. Provided with
PPM/SBUS receiver connector, the flight controller enables DIY players to
install 3rd-party receivers that are controllable using 3rd-party remote
control.

RC Racing Quadcopter's Camera
F220 RC racing quadcopter equipped with HD Aerial camera, Lens 700TVL, working
voltage: 12VDC.
The angle of the camera can be adjusted to yourself to get a better view.

LED Lights
In a multiplayer game, you can easily distinguish your flying machine to avoid
rear end collision or other accident. By using remote control or the PDB comes
with LED, you can switch mode status light easily. By turning switchover, you
can switch three different modes: light up, fast flash and slow flash; turning
off and switching machine tracking mode into fast flash, you can easily find
your machine

General Brand: TTF F220
Version: RTF
Motor Model: TTF2205-2300KV Brushless Motor
NO. of Cells: 2-4S LIPO
CW/CCW
Max Thrust: 440g/ piece
Flight Controller Omnibus F3
Integrated with 5.8G FPV transmitter
Supporting CleanFlight
Camera Video Resolution: 700TVL (horizontal resolution)
Video Standards: PAL
ESC Firmware: 4- in 1 BLHeli-S 20A 2-4S
Remote Channel: 6- Channels
Remote: 2.4GHz Wireless Radio Control
Mode: Mode 2 (Left Hand Throttle)
Detailed Control Distance: About 1000m
Transmitter Power: 4 x 1.5V AA (not included)
Model Power: Rechargeable Battery
Battery Battery(mAH): 1500 maH
Battery Voltage: 3S
Battery Coulomb: 25C
Flying Time: About 10 mins
Charging Time: 60 minutes
Package Product Weight: 0.35kg
Package Weight: 1.57kg
Product Size: 20*17*4.5 cm
Package Size: 26*24*13 cm

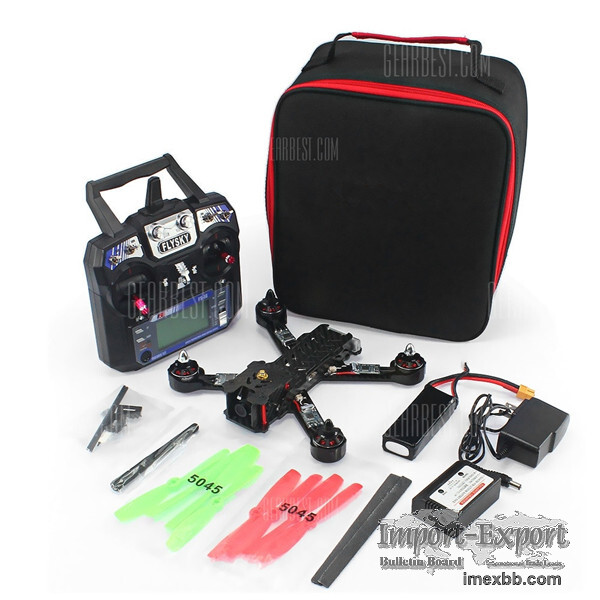

Package Contents Package Contents: 1 x RC Drone (with Receiver), 1 x
Transmitter, 1 x 11.1V 1500 mAh 25C LIPO Battery, 1 x Balance Charger, 1 x
Power Adapter, 1 x Antenna, 8 x Propeller, 1 x Pack of Accessories, 1 x English
Manual, 1 x Carrying Case

Established in 2002, Shenzhen TitanFlying Technology Co., Ltd (TTF) is located
in Shenzhen University Town, known as the Silicon Valley of China. We provide
cheap fpv drone and etc. Want to know fpv drone price or more? Please contact
us.

Minimum Order: 1 pieces
