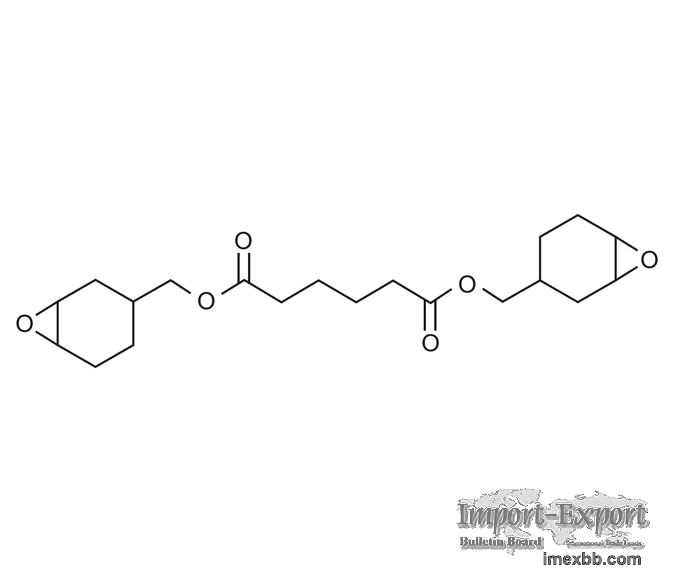

TTA26: Bis (3,4-Epoxycyclohexylmethyl) adipate Cas 3130-19-6

As the typical cycloaliphatic epoxy resin, TTA26 (bis ((3 4
epoxycyclohexylmethyl) adipate) has excellent weather resistance and electrical
insulation, low curing shrinkage, good heat resistance, low viscosity and good
toughness. It is widely used in the fields of composites, electrical insulation
materials, electronic embedment materials, cationic curing resin raw materials,
etc. It has similar electrical insulation and weather resistance to TTA21, but
it shows good flexibility due to its increased molecular chain length. It is
often used in combination with TTA21 to improve the toughness and other
properties of the cured product. It is suitable for UV SLA, anhydride and
thermal cation curing.

Specifications of Tetra TTA26 (Cas 3130 19 6)
Grade TTA26 TTA26E
Product name Bis(3,4-epoxycyclohexylmethyl) adipate
CAS No. 3130-19-6
Total chlorine（ppm） / 200 max
Epoxy equivalent (g / eq) 190～210 190～210
Viscosity (mpa.s/25℃) 400～750 400～750
Chroma 150 APHA max 150 APHA max
Water(%) 0.10 max 0.10 max
Density (g / ml) 1.140～1.158 /

Application of Tetra TTA26 (Cas 3130-19-6)
Dilution Ability
Formula composition: TTA26: polyurethane acrylate

Test conditions: DHR-25 ℃

DHR rotary rheometer

The figure shows that the TTA26 has a strong dilution ability. There will be an
obvious dilution effect when the addition amount in the formula exceeds 20%.

Jiangsu Tetra New Material Technology Co., Ltd. is a Chinese multinational
chemical corporation active in the fields of specialty, fine and custom
chemicals. Tetra has strong R&D, Manufacturing, Sales, and Customer Services
teams, which makes it an leading company of cycloaliphatic epoxy resin, and
aims to become a top-tier solution provider in new materials.

If you want to know more kinds of specialtyresins, please visit our website.

Minimum Order: 200 kilograms
