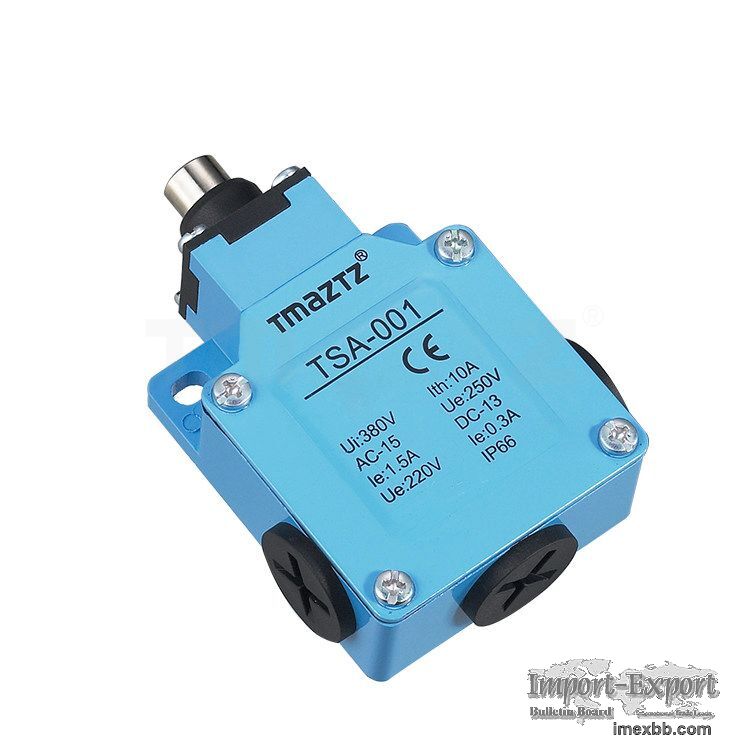

TSA-001 sealed plunger actuator Limit Switch
■ Stainless steel idler wheel, punch and spring; ■ Selective M18x1.5 cable gland.
Ratings Rated voltage Noninductive Load (A) Inductive Load (A) Resistance Load Lamp Load Inductive Load (A) Motor Load NC NO NC NO NC NO NC NO 125VAC 5 5 1.5 0.7 3 3 2 1 250VAC 5 5 1 0.5 3 3 1.5 0.8 8VDC 5 5 3 3 5 4 3 3 14VDC 5 5 3 3 4 4 3 3 30VDC 5 5 3 3 4 4 3 3 125VDC 0.4 0.4 250VDC 0.2 0.2 Inrush Current N.C: below 24A, N.O: below 12A
NOTE: 1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC). 2. Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current. 3. Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring.
Characteristics Operation speed 0.5mm-50cm/sec Operating frequency Electical: 30 operations/minute Contact resistance 25mΩ max. (initial value) Insulation resistance 100MΩ min. (below 500VDC) Dielectric Strength 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity 1500VAC, 50/60 Hz for 1 minute between current-carrying and non- current-carrying metal parts 1500VAC, 50/60 Hz for 1 minute between each terminal and ground Vibration 10-55Hz,1.5mm double amplitude Shock Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S) Ambient Temperature -10~+65℃ (With no icing) Humidity <95% RH Weight About 195 to 246g Electrical Life Above 500000 Degree of protection IP65
Operating Characteristics Operating Characteristics Model TSA-001 TSA-003 TSA-012 TSA-021 TSA-041 TSA-031 TSA-051 TSA-061 TSA-071 TSA-081 Operating force OF (Max) 7.84N 7.84N 7.84N 3.92N 3.92N 3.92N 3.92N 1.47N 1.47N 1.47N Release force RF (Min) 3.92N 3.92N 3.92N 0.98N 0.98N 0.98N 0.98N 0.49N 0.49N 0.49N Pre-travel PT (Max) 1.8mm 1.8mm 1.8mm 20° 20° 20° 20° 30mm 30mm 30mm Tripping position TP±10% 2.0mm 2.0mm 2.0mm 22.5° 22.5° 22.5° 22.5° 22.5° 22.5° 22.5° Movement differential MD (Max) 1.2mm 1.2mm 1.2mm 10° 10° 10° 10° 14° 14° 14° Over travel OT (Min) 4.0mm 4.0mm 4.0mm 75° 75° 75° 75° 20mm 20mm 20mm Total travel TT (Min) 5.8mm 5.8mm 5.8mm 95° 95° 95° 95° 50mm 50mm 50mm Rotary indexing 22.5° 22.5° 22.5° 22.5°
