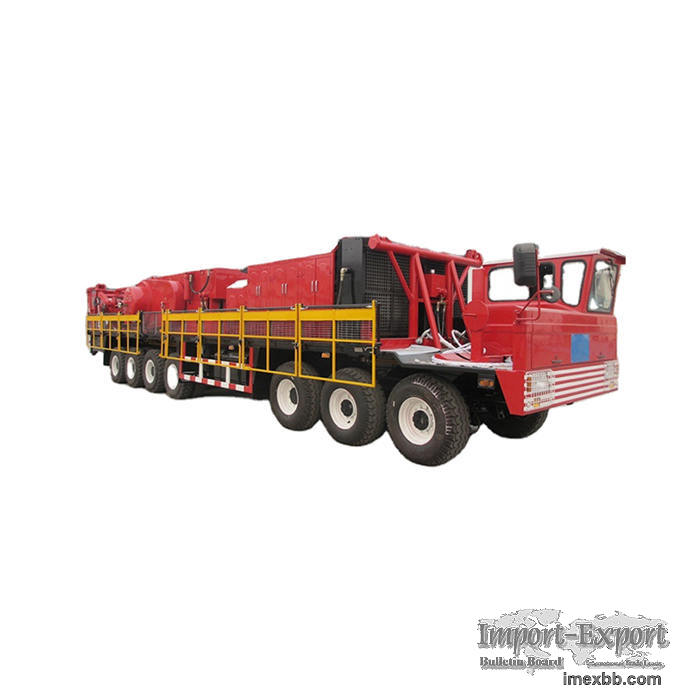

Truck Mounted Workover Rig Xj150 Xj250 Xj350

Truck Mounted Workover Rig Xj150 Xj250 Xj350
Product Description
The XJ250 truck mounted workover unit adopts single drum draw-works, hydraulic
telescopic double (or single) section mast, economical and practical Cummins
engine, Winstar hydraulic transmission case. It has the advantages of simple
structure, good transportation performance and easy for filed installation and
maintenance, etc.
Truck Mounted Workover Rigs
Description XJ250 Workover Rig (Overhaul) XJ250 Workover Rig (Servicing)
Workover Depth 3,200m(10,500ft, 2-7/8'' DP) 2,000m(6,560ft, 2-7/8'' DP)
Servicing Depth 3200m (10,500ft, 2-7/8''EUE Tubing)
Rated Hook Load 400kN (90,000 lbf)
Max. Hook Load 735kN (165,000 lbf ) 675kN (151,700 lbf)
Traveling System 3*4 {Φ22mm (7/8'') Wireline)
Hook Hoisting Speed 1.5m/s (4.92ft/s)
Overall Dimensions(l*w*h) 18.5*2.9*4.2m60.7*9.5*13.8ft
16.5*2.9*4.2m54.1*9.5*13.8ft
Weight 50,000kg (110,230 lb) 45,000kg (99,200lb)
Max. Travel Speed 60km/h (37mph), but limit 45km/h(28mph)
Carrier Self-propeller 10*8 Self-propeller 6/4
Engine Model and Rated Power Caterpillar C9/ATAAC260kW(350hp/2100rpm)
Truck Mounted Workover Rig Xj150 Xj250 Xj350
