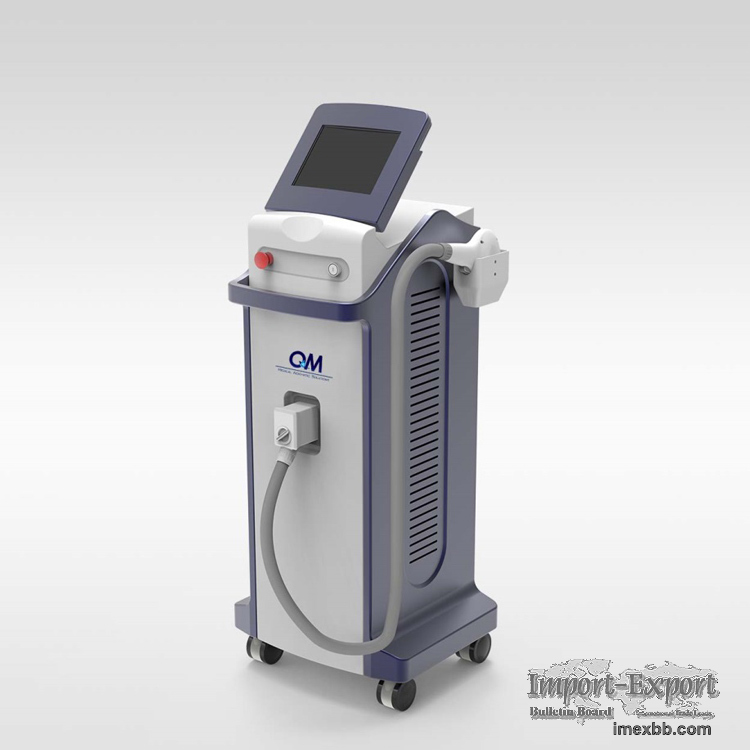

Triple Wavelength 755nm+808nm+1064nm Diode Laser Hair Removal System

Model：QM-808+

Triple Wavelength 755nm+808nm+1064nm Diode Laser Hair Removal System


Applications：

For any unwanted hairs on areas of face, arms, armpits, chest, back, bikini,
legs and etc.
(including light, blond and thin hairs)

Working Principle:
Diode laser hair removal technology is based on the selective dynamics of light
and heat. The laser goes through the skin surface to reach the root of hair
follicles; light can be absorbed and converted into heat damaged hair follicle
tissue, so that hair loss regeneration without injury surrounding tissue.
Slight pain, easy operation, the most safe, technology for permanent hair
removal now.It is performed using gold standard 755nm+808nm+1064nm diode laser
technology, with energy penetrates deep into the dermis with high average power
and a rapid 10 pulse-per-second repetition rate to heat the hair shaft and hair
follicle, rather than destroy the oxygen organization around hair
follicle.Meanwhile, contacting surface cooling technology applied on the
Sapphire Dual-Chill Tip can eliminate the heat effect attributed to optical
energy, greatly improving both the treatment performance and safety.
Technical Specifications:

Laser Type Diode Laser
Laser Stacks Power 600W
Wavelength (Spectrum) 755nm+808nm+1064nm
Energy Density (Fluence) 166J/cm2 (Continuously adjustable)
Spot Size 15x15mm2
Dual chiller 25*25mm
Pulse Repetition Rate 1-10Hz
Pulse Duration 10-400ms
Pulses Single

Cooling • Continuous Sapphire contact cooling(-5℃~1℃)
• Air cooling
• Closed water circulation cooling
Stand-by Working Continuously for 20 hours
Display 10" True Color LCD Touch Screen
Electrical Requirements 110/230VAC, 15/20A max., 50/60Hz
Net Weight 55kgs
Dimensions (WxDxH) 450*550*1000 mm

Minimum Order: 1 sets
