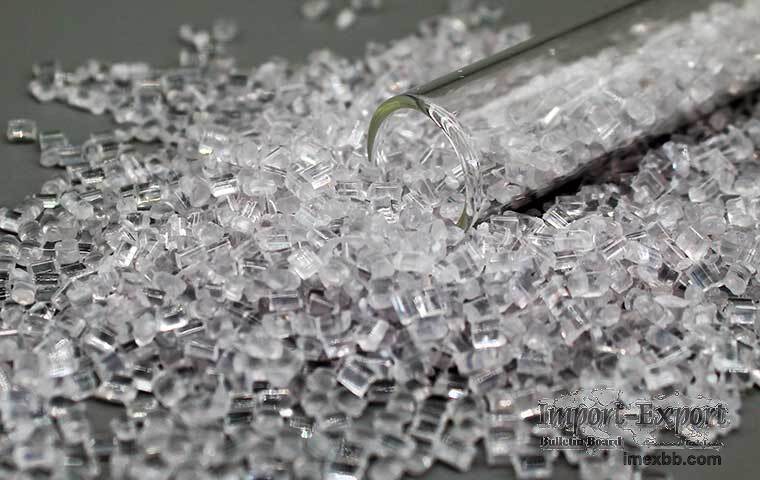

Transparent ABS (MABS Plastic)

Transparent ABS, also called MABS plastic material, which has excellent
transparency, impact toughness and good processing properties. The light
transmittance of transparent ABS is about 88%, second only to PMMA (91%) and PC
(90%). The main manufacturers of this MABS plastic material are LG Chemical,
Toray and Denka.
Transparent ABS Typical Application
Many chemicals will corrode the rubber phase in the ABS resin, causing the
transparent ABS to fog. MABS plastic material is widely used in household
appliances and kitchenware, consumer goods, automotive and packaging
industries. At present, transparent ABS resin is mainly used in small
appliances such as TVs and air conditioners, refrigerators, washing machines,
floor scrubbers, window cleaners, etc., and parts of transparent windows,
double-shot molding TV front frames, and air-conditioning panels sprayed on the
back are also made by transparent ABS (MABS plastic).

Transparent ABS Processing Detail
Here are the processing details of transparent ABS（MABS plastic material）, a
kind of ABS engineering plastic.

Other Details of Transparent ABS (MABS plastic)
Physical Property of Transparent ABS  (MABS plastic)

Ash    (15.0% 1 ISO3451/1)
Conditioned 600°C*2h
Density (1250Kg/m3 1 ISO1183)
Conditioned 23°C
Shrinkage Parallel Flow (0.5-0.7 % 1 ISO294-4)
Shrinkage Vertical Flow (0.7-1.1% I ISO294-4)
Mechanical Properties of Transparent ABS  (MABS plastic)
Tensile strength (125.0MPa 1 ISO527)
Conditioned 5mm/ min
Tensile Strain at Break (2.5% I ISO527)
Conditioned 1.0J
Notched Impact Strength (125 0MPa I ISO527)
Conditioned 2mm/min
Flexural Strength (190MPa 1ISO178)
Conditioned 2mm/min
Flexural Modulus (5700 MPa I ISO178)
Conditioned 5mm/ min
Thermal Property of Transparent ABS  (MABS plastic)
Melting Point (220°C I ISO11357)
Hot Deformation Temperature (175*C I ISO75)
Conditioned 1.8MPa
Flammability Class (HB 1UL94)
Conditioned mm
Injection Molding Conditions of Transparent ABS  (MABS plastic)
Drying Temperature 130°C
Drying Time 3h
Cylinder Temperature 240-260°C
Nozzle Temperature 240-260*C
Tooling Temperature 80*C
