Transense CU DHP Ac Condenser Tube For Heating Systems And Ventilation Syst

Condenser Tube for heating systems and Ventilation systems

Product Description

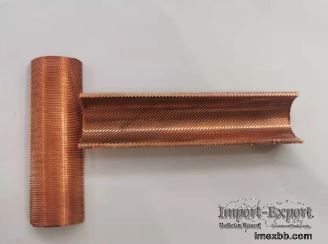

Copper condenser tube,specially designed for the condenser, the sharp ridges on
the radial and axial outside finned section of the tube destroy the surface
tension of gas, so as to make the condensing liquid dripping. The tube has high
heat transfer coefficient and condensing efficiancy.The Process of Copper
Condenser Tube is Extruded processes (Rolling).Copper Condenser Tube will pass
100% Eddy Current Testing, 100% hydraulic Testing.OEM of copper condenser tube
is available according to drawings and/or samples.

Application

Copper condenser tube especially suitable for heating systems, Ventilation
systems, Refrigeration and climate control systems, Mechanical engineering,
Automotive manufacturing and Chemicals and pertrochemical and power plant
technology.

Packing of copper condenser tube Outside: Plywood sea-worthy case or pallet.

Copper Condenser Tube
Item Light tube Wing fragment
O.D. O.D. Wall Thickness minimum Wall Thickness Ridge Height Nominal
outside surface area actualoutside surface area Nominal inside surface
area Nominal inside surface area
mm mm mm mm mm ㎡/m ㎡/m ㎡/m ㎡/m
1 12.7 12.65 0.6 0.5 0.2 0.0399 0.1101 0.0348 0.0433
2 15.88 15.7 0.635 0.56 0.3 0.0499 0.1733 0.0429 0.0625
3 19.05 18.85 0.635 0.56 0.35 0.0598 0.2282 0.0529 0.0858
4 19.05 18.85 0.711 0.63 0.35 0.0598 0.2387 0.0526 0.0858
5 19.05 18.85 0.889 0.8 0.35 0.0598 0.2482 0.0523 0.0852
6 25.4 25.15 0.635 0.56 0.4 0.0798 0.3098 0.0725 0.1202
