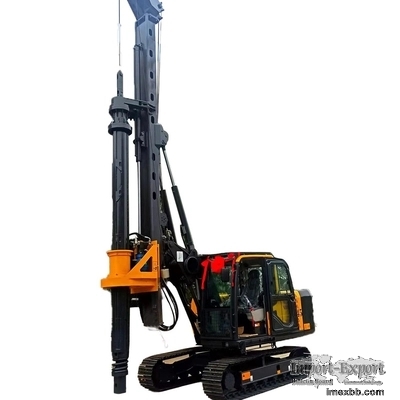

TR45 Compact Piling Rigs Small Borehole Machine at limitedaccess Tescar

Product Description
TR45 Small Borehole Drilling Machine Rotary Drilling Rig shipped with kelly bar





TR45 mini rotary drilling rig machine Mainly used in soft soil piling, such as
the foundation, seaports, Bridges, reservoirs station, and national defence
construction and so on, widely used in rotary screw pile ,pile engineering,
drilling engineering, geological prospecting, building projects, such as
engineering blasting and so on.



TR45 small rotary drilling rig adopt pressurized drilling mode, enabling rotary
drilling depth is max 15m. matching the different specifications of drilling
tools, pile hole diameter range up to 1000mm.



This borehole drilling machine has high drilling efficiency ,and after
construction, it can quickly move to next work site, flexible, convenient and
efficient, is a national high-speed rail construction-specific piling machinery
equipment.





Technical parameters:



Main specification Unit Parameter
Pile
Max. drilling diameter mm 1000
Max. drilling depth m 15
Rotary head
Torque kN. m 45
Speed rpm 0-60
crowd cylinder system
crowd force push/pull kN 80/80
stroke m 2
Main winch
lifting capacity kN 60
Rope diameter mm 16
Max.line speed m/min 50
Auxiliary winch
lifting capacity kN 15
Rope diameter mm 10
Max.line speed m/min 40
Mast inclination
Forward/backward 5
Lateral 4
Main chassis
base engine 　 　
engine power kw/rpm 56.5/2200
Track width mm 2300
Track shoes mm 450
Overall machine
overall weight kg 13000
LxWxH in working condition mm 4560x2300x8500
LxWxH in Transportation mm 7200x2300x3000
Kelly bar
Interlocking kelly bar 4x4.4m m 15




Advantages of TR45 mini rotary drilling rig machine:



1. TR45 is positioned for industrial and civil construction and municipal
construction in small cities. It can perform efficient construction and rapid
operation within the range of 1.0 m borehole diameter and 15 m borehole depth.



2. Sinovo self-made chassis is adopted with mature technology, strengthened
chassis, higher working reliability and more convenient maintenance.Sinovo
customized Cummins mechanical direct injection supercharged engine with good
oil adaptability, low speed and high torque,low fuel consumption,low noise and
high reliability under bad conditions. Load sensitive hydraulic system with low
energy consumption and high efficiency can realize efficient and accurate
control.



3. The whole machine is transported with Kelly bar, which can be transferred
quickly without disassembly. High speed rotary head maximum speed up to 60 rpm.



4. Flexible: the whole tonnage is small, simple operating, moving fast,
convenient transition, etc features.


We have more than 15 years' experience in foreign trade this field. We have
professional and efficient international freight forwarders, with the best
price, delivery goods on time.And we have more than 10 year's experience in sea
transportation.We supervise the process from the factory to the port designated
by the customer to ensure that the customer's products arrive at the
destination accurately and safely.





Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer, and our factory mainly produces series
hydraulic rotary rig, hydraulic pile breaker, exploration equipment, core
drilling rig and related piling equipment etc.



Q: What kind of product certification do you have?

A: Our series products have passed ISO9001, Gost and CE certifications.

We strictly perform quality inspection process before shipment and supply the
best quality machines to our customers.



Q: Do you have after sales service?

A: Yes, we have professional service team to assist our clients . If you
request, we can dispatch our engineer to your worksite to provide training for
your staff. For the chassis, eg CAT chassis, our clients can enjoy global after
service support.



Q: How about the warranty policy ?

A: Most of our products support 1 year or 2000 working hours warranty, please
consult customer service for specific products



Q: Do you test all your goods before delivery?

A: Yes, we have strict quality inspection process before shipment, and the
clients also authorize SGS to inspect our machine.
