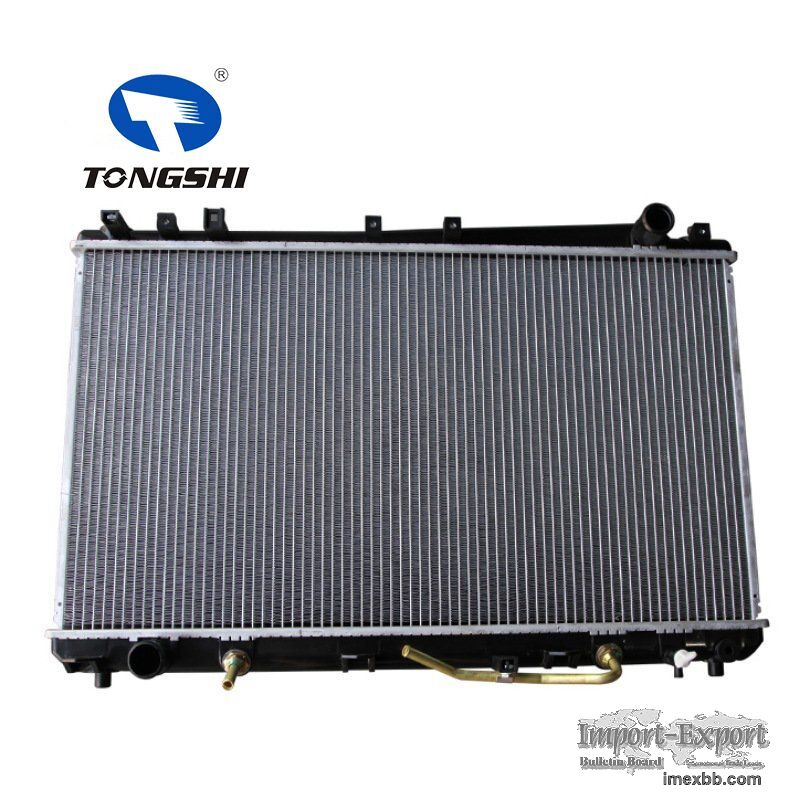

TOYOTA AVALON HEAVY DUTY’00-04

Product information
TS NO.: 75140
MODELS: TOYOTA AVALON HEAVY DUTY’00-04
CORE SIZE: 400*708
OEM: 16400-0A170/80
Application Scope: This radiator is suitable for the Toyota Avalon model,
covering the years 2000 to 2004.
Heat Dissipation Performance: Toyota Avalon Radiator is designed to
effectively dissipate the heat generated by the engine, ensuring proper engine
operation. It is made of high-quality materials and designed to provide
reliable heat dissipation performance.
Durability and Quality: Radiator undergoes rigorous quality control to ensure
its durability and reliability. It is made of durable materials and utilizes
advanced manufacturing processes to meet the demands of high-intensity use.
The Passenger Vehicle Division has advanced production equipment and a strict
product quality assurance system. It produces more than forty-two series of
more than 8000 models of radiators for cars, mini vehicles, light vehicles and
truck. A series of complete production process lines including parts
cleaning,core assembly , core brazing, water chamber withholding product
inspection,product packaging, ect.
The heat dissipation belt is made of a combined folded edge belt,whch improves
the ability of the heat dissipation belt to resist lodging and ensures the
stability of the crest distance. The crest distance is stable at 2.9-3.0, which
is better than domestic counterparts and improve the heat dissipation
efficiency of the product. The material is AA3003.
The division strictly follows the requirement of OEM standards to do a good job
of product quality, and strictly controls each production process. After
continuous developement, its design level, process level, product quality,
business reputation and marketing service quality have been continously
improved, and it has strong market competitiveness.
The production process of an automotive radiator typically includes the
following main steps:
Design and planning: The manufacturer designs and plans the radiator based on
the car model and specifications. This involves determining the radiator's
size, materials, cooling efficiency, and other technical requirements.
Material preparation: Prior to production, the materials required for the
radiator are prepared. These primarily include aluminum alloy or copper alloy
sheets, plastic end tanks, pipes, and solder. These materials will be used to
manufacture the core structure and cooling circuits of the radiator.
Core manufacturing: The radiator's core structure typically consists of a
series of closely spaced parallel tubes and fins. Firstly, the manufacturer
employs stamping techniques to shape and size the metal sheets accordingly.
Then, these sheets are stacked together to form the parallel cooling tubes.
Subsequently, the tubes and fins are fixed together using welding or aluminum
brazing, creating a complete radiator core.
Assembly: Once the core and end tanks are manufactured, they are assembled
together. This involves connecting the end tanks to the radiator core and
securing them using welding, adhesives, or other connection techniques.

Testing and quality control: After assembly, the Custom Car Radiator undergoes
a series of testing and quality control procedures to ensure proper functioning
and compliance with standard requirements. These tests may include pressure
testing, leakage testing, and cooling performance testing, among others.
Packaging and shipment: Once the radiator passes testing and quality control,
it is packaged and prepared for shipment. Packaging typically involves measures
to prevent shock and corrosion, ensuring the product's safety during
transportation and storage.
