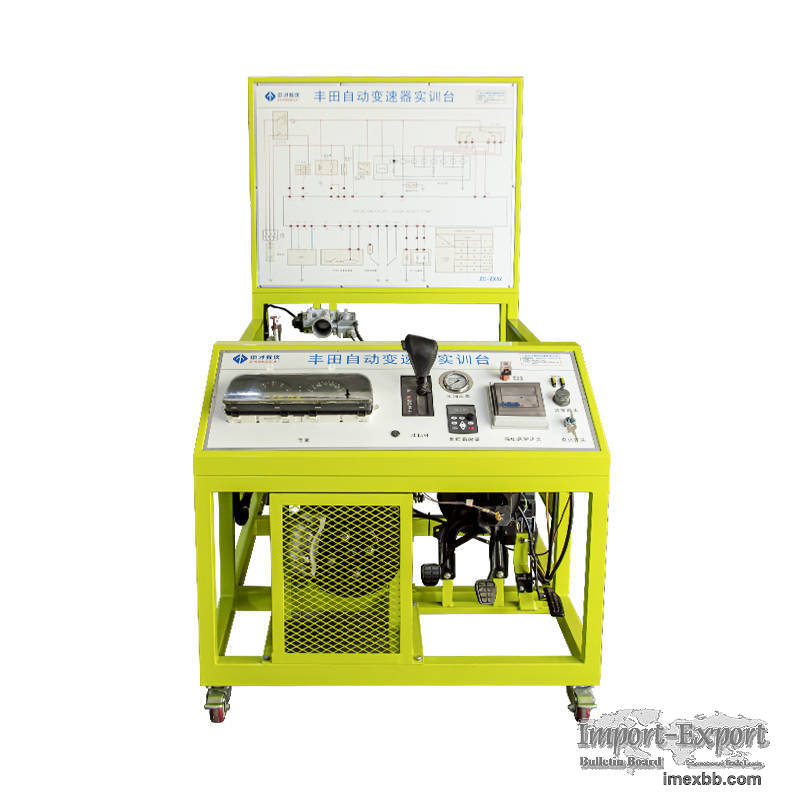

Toyota automatic transmission training bench

【Product Introduction】
The training bench uses Toyota A340E original electric automatic transmission
as the basis, speed control three-phase motor as the power source, the
automatic transmission can be gear display, gear shift and other test
conditions of actual operation. Real display of electric automatic transmission
composition structure and principle and working process. Suitable for all types
of colleges and training institutions on the theory of electronically
controlled automatic transmission and maintenance training needs of practical
training. The training table training function is complete, easy to operate,
safe and reliable, beautiful and generous.

【Structure composition】
Toyota A340E automatic transmission assembly, automatic transmission control
unit, gear lever assembly, transmission oil heat sink, instrumentation, three-
phase speed control motor, throttle body assembly, engine crankshaft sensor and
signal panel, diagnostic socket, pressure gauge, fault setting system, the
original car circuit schematic board and detection terminals, mobile stand,
etc. Equipped with practical training guide and operating instructions for the
stand. The sensors and actuators are installed with digital display table, main
oil pressure gauge, casters with locking universal, stainless steel hand guard,
high temperature and rotating parts of the table are equipped with protection
devices.

【Functional features】
1. Automatic transmission normal operation, diode display solenoid valve
working condition.
2. Fault simulation system can simulate the actual operating conditions, set a
variety of real car automatic transmission common faults.
3. Pointer type pressure gauge indicates the main oil pressure value.
4. The training table panel is painted with colorful spray-painted circuit
diagrams, spray-painted with Plexiglas protection, students can intuitively
control the circuit diagrams and engine objects, recognize and analyze the
working principle of the control system.
5. The training table panel is installed with detection terminals, the panel
can directly detect the sensors, actuators, such as resistance, voltage,
current, frequency, waveform signal, etc.
6. Equipped with the original car diagnosis seat, you can use the computer
diagnostic instrument to read the fault code and data flow of the automatic
transmission electronic control system.
7. The training bench is equipped with a power switch, and other rotating parts
of the protective cover and other safety protection devices.
8. The transmission can be used for various practical training projects. The
transmission can be shifted/automatic gear lift and other practical tests.
9. The base part of the training table adopts steel structure welding, panel
cabinet stamping and forming, panel cabinet and base can be separated, the
surface of the table frame adopts baking paint technology, with universal self-
locking casters device.
10. Appearance size: 1500mm X 1000mm X 1700mm (length X width X height),
weight: 200KG

Minimum Order: 1 sets
