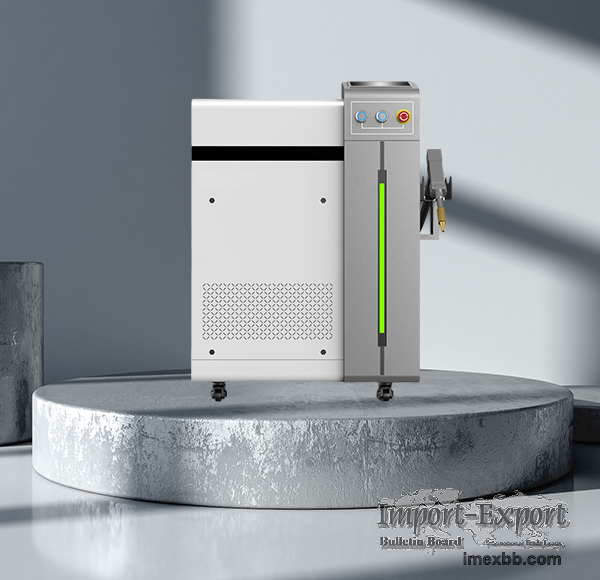

TOPTEK LASER Portable Laser Welding Machine 1000W/1500W/2000W/3000W

Fiber laser welding machine is an advanced welding technology which is a
perfect replacement of traditional electric welding, MIG and CO2 welding.

Laser welding process is to melt the connecting area by a very high-energy and
dense beam with a large amount of heat. The single module optical fiber laser
source provides consistent and stable power and high quality of laser beam. The
laser power range can be adjusted according to actual production needs. This
solution guarantees unparalleled application flexibility and high reliability.
Technical Parameters
Name Portable laser welding machine Welding thickness Carbon
steel,Stainless steel (0.5-8mm)
Laser Power 1000W/1500W/2000W/3000W Welding seam ≤0.5mm
laser wavelength 1064 NM Voltage AV 220V/380V
Laser cable length Standard:8-10 meter, Max:15meters Laser lifetime
100,000 hours
Working mode Continuous Working humidity range <70% without
condensation
Welding speed 0-120 mm/s  Working positioning Red dot focus
Chiller Industrial constant temperature water tank Power protection
IP54
Working temperature 15-35℃

Minimum Order: 1 pieces
