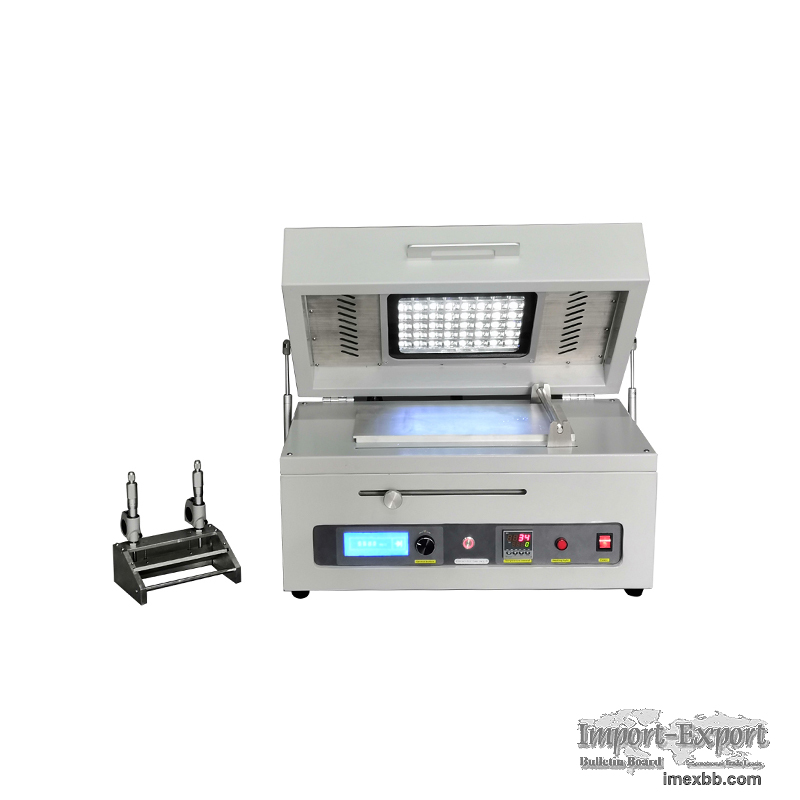

top UV curing bottom heated film coater by tape casting for Li-ion

Product introduction:
heat type tape casting technology is widely used in various high-temperature
coating films, such as ceramic films, crystal films, battery material films, and
special nano-films; it can adapt to the future development of film-forming science
and technology under high temperature conditions.

Main features:
1. Drying system with strong wind heating and digital display temperature control,
the maximum working temperature is 200C;
2. The coating film speed is adjustable in the range of 0~100mm/sec, and has
digital display;
3. Vacuum aluminum plate, available Quickly place or remove the substrate;
4. The stroke can be adjusted by the travel switch between 10~250mm;
5. With a doctor blade that adjusts the thickness of the coating film (accuracy
0.02mm) width 0-150mm;

Minimum Order: 1 sets
