Top Turn Out Hydraulic Metal Scrap Baler Press Machine For Metal Copper Alu

PRODUCT DESCRIPTION
Top Turn Out Hydraulic Metal Scrap Baler Press Machine For All Kinds of Metal
Copper Aluminum Steel Scrap CE Certificate


We are China Scrap Metal Baler Factory in Jiangsu Province.


1. Product:

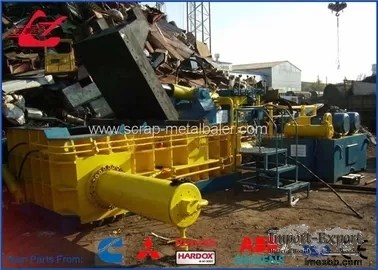

The Y83-200 Wanshida Metal Baler is mostly applicable for metal smelting
factory with medium output, as well as the waste metal recycling station. It is
a manually operated machine. Its compress room size can be chose
1600x1200x800mm and 1800x1400x900mm as customers like. The dimension of the
compressed bale is about 400x400mm in size.



Based on the demands of customers, the waste scrap metal baler can be matched
with 37kW or 44kW power supply. It’s output is able to reach 4-6tons per hour.
More information please contact our sales department.



2. Technical Specifications:

Waste Steel Bailer-Turn out
Model Y83-200
Cylinder pushing /shearing force 200 ton
Maximum working pressure 25MPa
Capacity 4-6 tons/h
Compress room size 1600×1000×800mm
Bale dimensions (LxWxH) (~500)×400×400mm
Theoretical dry cycle time 100 sec.
Max. thickness can be press 4.5mm
Motor 37kW
Baler dimensions (LxWxH) 4680×3000×2450mm
Weight 15000KG








































3. Details:

Driven by hydraulic system, this turn out baler is highlighted by reasonable
design, compact structure, small volume, light weight, small inetia of
movement, low noise, stable traveling performance, flexible operation and so
on.


Under the integrated hydraulic and electrical control, it is easy for
operation and maintenance.


With wide applicable range, this product can work as the processing equipment
in scrap metal recycling unit. It is also suitable for processing the furnace
charge in the foundry of factory. The equipment offers powerful adaptability
for the working conditions.


Our turn out baler performs with low energy consumption, easy installation,
secure operation, high working efficiency, low price and other merits.



4. Optional Extra

Conveyor Feeding
Oil heater
Oil cooler

Diesel Engine Drive

5. Applications

Non Ferrous Metals

Coppers

Aluminum Cans

Aluminum Windows

Scrap Aluminums

25 Liter Drums

Tin Cans

Steel Shavings

Aluminum Chips

Aluminum Sheets

Aluminum And Copper Wires
