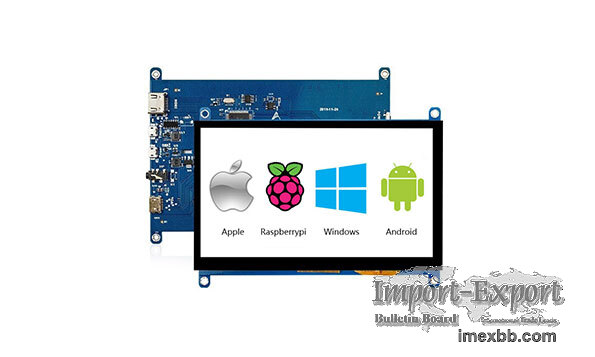

TN TFT LCD Display

The full name of TN is twisted nematic. Zhunyi TN TFT LCD Display covered 2.4"
to 15", with resolution from 240*320 to 1024*768. Popular interfaces include
SPI, MCU, MIPI, RGB, and LVDS. There are vertical and horizontal screens.

Due to its narrow view angle, tft tn panel is mainly used in some industries,
medical and household appliances.
Size(inch) Resolution Model No. Outline Dimension(mm) Active
Area(mm) View Angle Interface Luminance(nits) Touch Screen
OP(℃)
2.4 240*320 Z24009 40.52*57*2.39 36.72*48.76 TN MIPI 400
Support -20℃~70℃
2.4 240*320 Z24017 40.52*57.00*2.40 36.72*48.76 TN MCU
550 Support -20℃~70℃
3.2 240*320 Z32001 53.6*76*2.45 48.6*64.8 TN MCU/SPI+RGB
300 Support -20℃~70℃
3.2 240*320 Z32015 53.6*76*2.45 48.6*64.8 TN SPI 300
Support -20℃~70℃
3.5 320*480 Z35011 55.66*85.04*2.4 48.96*73.44 TN MIPI 350
Support -20℃~70℃
3.5 320*480 Z35012 54.76*83.29*2.39 48.96*73.44 TN MIPI
350 Support -20℃~70℃
5.7 320*240 Z57001 143.2*103.8*11.0 115.2*86.4 TN MIPI
1000 Support -20℃~70℃
5.7 640*480 Z57002 127*98.43*8.2 115.2*86.4 TN MIPI 700
Support -20℃~70℃
7.0 800*480 Z70015-P15 165*100*5.7 154.21*85.92 TN RGB
320 Support -20℃~70℃
7.0 1024*600 Z70041 163.70*96.9*2.6 154.21* 85.92 TN LVDS
300 Support -20℃~70℃

As a professional display screen factory, Zhunyi has high-quality Liquid
crystal display for sale. Welcome to contact us if needed.

Minimum Order: 1 pieces

Click to Enlarge
